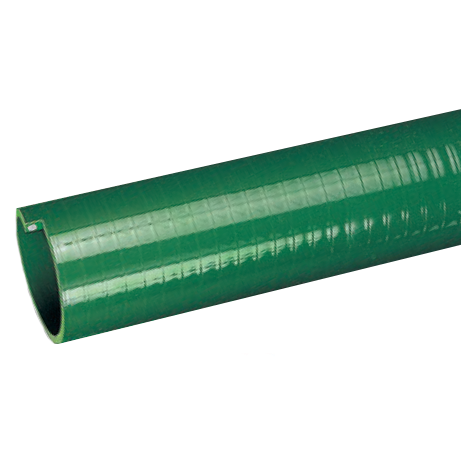

J600X100 Tigerflex by Kuriyama | J Series | Standard Duty Suction Hose | 6" ID | PVC | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Agricultural liquid fertilizer, Air seeder lines, Drain lines, Irrigation lines, Mining applications (MSHA), Pumps, trash, Rock dusting, Water suction - standard duty, Rental and Construction Dewatering | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | MSHA(09), RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| J075X100 | 3/4" | 19.0mm | 1.01" | 25.6mm | 110 PSI | 70 PSI | 28 in.Hg | 26 in.Hg | 3" | 100ft | 0.19 lbs |
| J100X100 | 1" | 25.4mm | 1.26" | 32.0mm | 85 PSI | 60 PSI | 28 in. Hg | 26 in .Hg | 3" | 100ft | 0.26 lbs |
| J125X100 | 1-1/4" | 31.7mm | 1.56" | 39.6mm | 85 PSI | 60 PSI | 28 in. Hg | 24 in .Hg | 4" | 100ft | 0.35 lbs |
| J150X100 | 1-1/2" | 38.1mm | 1.83" | 46.5mm | 70 PSI | 50 PSI | 28 in. Hg | 24 in. Hg | 5" | 100ft | 0.48 lbs |
| J200X100 | 2" | 50.8mm | 2.32" | 59.0mm | 65 PSI | 45 PSI | 28 in. Hg | 24 in. Hg | 7" | 100ft | 0.66 lbs |
| J250X100 | 2-1/2" | 63.5mm | 2.87" | 73.0mm | 65 PSI | 45 PSI | 28 in. Hg | 24 in. Hg | 8" | 100ft | 0.87 lbs |
| J300X100 | 3" | 76.2mm | 3.43" | 87.0mm | 60 PSI | 40 PSI | 28 in. Hg | 22 in. Hg | 10" | 100ft | 1.24 lbs |
| J400X100 | 4" | 101.6mm | 4.50" | 114.7mm | 50 PSI | 35 PSI | 28 in. Hg | 22 in. Hg | 15" | 100ft | 1.85 lbs |
| J600X100 | 6" | 152.4mm | 6.75" | 171.4mm | 40 PSI | 25 PSI | 28 in. Hg | 20 in. Hg | 30" | 100ft | 3.39 lbs |
