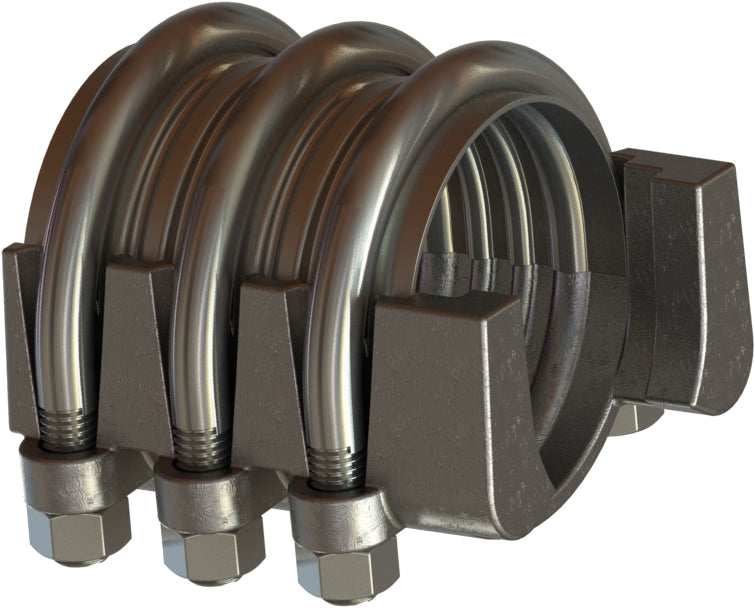

IC-16L by Campbell Fittings | Interlocking U-Bolt Clamp | Triple U-Bolt | 4" Hose Size | 5-1/16" - 5-1/2" Hose OD min/max

IC-16L by Campbell Fittings | Interlocking U-Bolt Clamp | Triple U-Bolt | 4" Hose Size | 5-1/16" - 5-1/2" Hose OD min/max

Sale price$359.88

by Campbell
Interlocking U-Bolt Clamps:Triple U-Bolt
Buy More, Save More!
Quantity Price Each
5–14 $338.29
15–29 $305.90
30+ $269.91
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight
Recommended Use:
  • High-pressure steam and air
Recommended Use:
  • 360 design wraps completely around hose for superior retention.
  • Clamps fit hoses tightly without cracking, eliminating costly rework.
  • Bolts on "up side" allow easier tightening/re-tightening and improve "dragability".
  • Field repairable.
Part Number Hose OD (min) Hose OD (max) Hose Size
IC-12S 3-5/16" 3-3/4" 3"
IC-12 3-11/16" 4-1/8" 3"
IC-12L 4-1/16" 4-1/2" 3"
IC-16S 4-5/16" 4-3/4" 4"
IC-16 4-11/16" 5-1/8" 4"
IC-16L 5-1/16" 5-1/2" 4"
IC-24L 7-11/16" 8-1/4" 6"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
