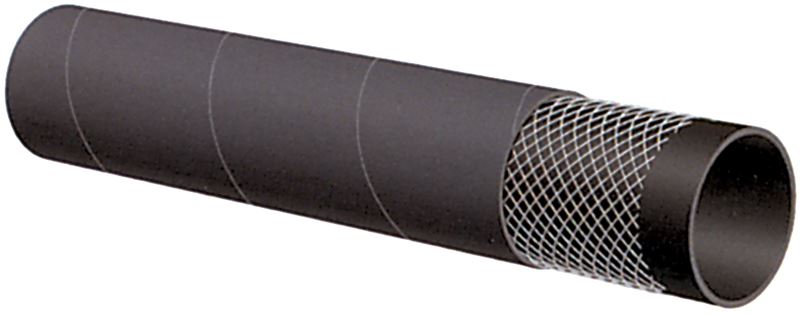

HWT763AA400X100 Alfagomma by Kuriyama | HWT763AA Series | Heavy Duty Dry Powder Delivery Hose (3/8" Tube) | 4" ID | 4.96" OD | 75 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | HWT763AA Series | Heavy Duty Dry Powder Delivery Hose - 3/8" Tube
For the discharge of dry powders under low pressure and the pneumatic transfer of dry materials and abrasive slurries.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,078.58 |
| 4–9 | $2,947.58 |
| 10+ | $2,620.07 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
75
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Discharge of dry powders under low pressure. Pneumatic transfer of dry materials and abrasive slurries. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | 3/8" black static conducting NR - compounded to resist cutting by abrasive materials. |
| Reinforcement: | Spiraled high tensile textile cords. | Cover: | Black conductive SBR/NR blend - abrasion and ozone resistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY T763 5 BAR (75 PSI) HEAVY DUTY BULK MATERIAL DELIVERY (in green letters) | ||
| Note: | Excessive bending during operation may cause premature wear. | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| HWT763AA400X100 | 4" | 102mm | 4.96" | 126mm | 75 PSI | 2.56 lbs/ft |
