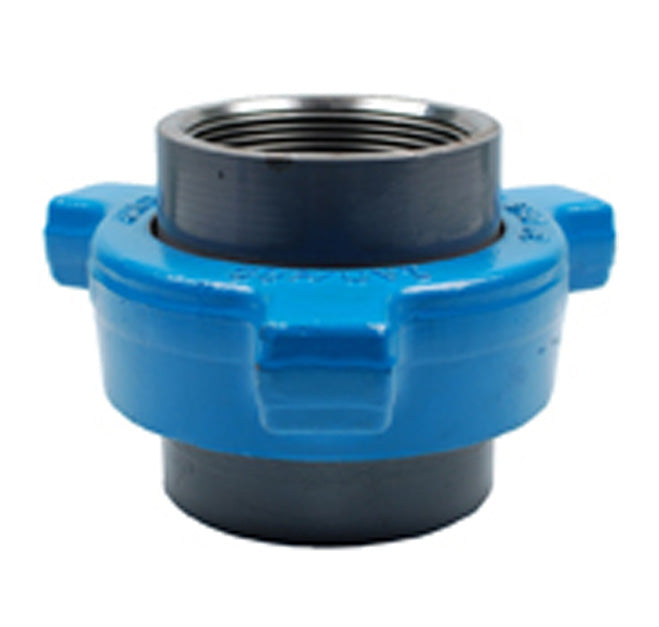

HUT200-2 by Kuriyama | HUT200 Series | Threaded Hammer Union | Figure 200 | 2" Size | 2000 PSI CWP | Carbon Steel

HUT200-2 by Kuriyama | HUT200 Series | Threaded Hammer Union | Figure 200 | 2" Size | 2000 PSI CWP | Carbon Steel

Sale price$31.55

Kuriyama of America Inc.
HUT200 Series | Threaded Hammer Union | Figure 200

Applications include oil, gas, air, and water.

Color-coded for easy identification.

Unions are interchangeable with like products.
Buy More, Save More!
Quantity Price Each
10–39 $29.66
40–79 $26.82
80+ $23.66
Discounts applied in cart/checkout.

What are the Features?

  • Applications include oil, gas, air, and water.
  • Color-coded for easy identification.
  • Unions are interchangeable with like products.
  • CWP (Cold Working Pressure) is the maximum pressure at +70¢ªF (+21¢ªC).

What are the Materials?

  • Body: A-105/AISI 1020 Carbon Steel.
  • Nut: A-105/AISI 1020 Carbon Steel.
Part Number Size
(in)		 CWP Rating
at 70°F 		Weight
Each
(lbs)
HUT200-1 1" 2000 PSI 1.55 lbs
HUT200-2 2" 2000 PSI 4.55 lbs
HUT200-3 3" 2000 PSI 11.70 lbs
HUT200-4 4" 2000 PSI 19.00 lbs
HUT200-6 6" 2000 PSI 44.40 lbs
HUT200-8 8" 2000 PSI 71.45 lbs

Product Data:

Series:
  • HUT200 Series
MAWP:

2000

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
