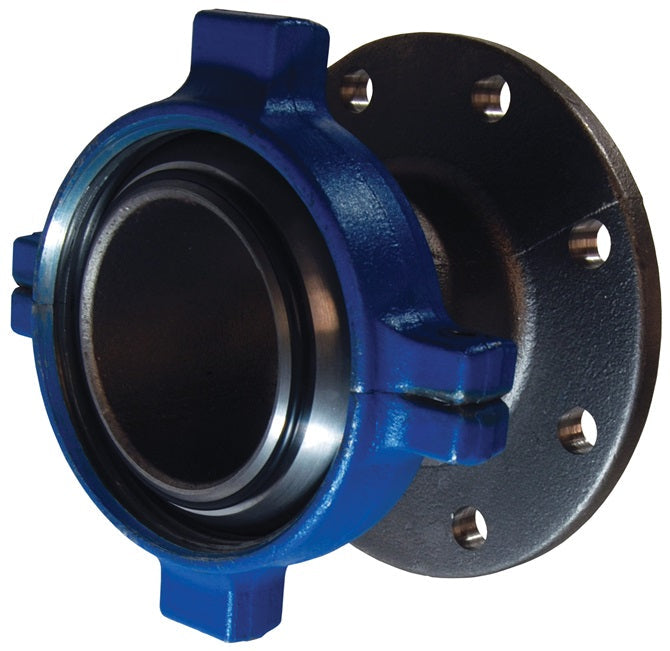

HUM206800FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 206 | 8" Size | 125# Flange x Male (Includes Nut and O-Ring) | Iron

HUM206800FLG by Dixon Valve | Boss® One-Piece Flange Adapter | Figure 206 | 8" Size | 125# Flange x Male (Includes Nut and O-Ring) | Iron

Sale price$958.47

Dixon Valve
Boss® | LPS One-Piece Flange Adapter

Used in the transfer of water, brine, water-based chemicals, water-based acids, and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.
Buy More, Save More!
Quantity Price Each
5–14 $900.96
15–29 $814.70
30+ $718.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss
Shape:

Straight
Features:
  • Use with HU200400RN two-piece nut.
  • Flange x female or male hammer union straights (standard or short length).
  • No welds or pipe threads to deteriorate and cause premature leakage.
  • Two-piece nut is pinned and bolted for perfect alignment.
  • All 4" Figure 206 threads are interchangeable with other reliable brands.
  • 125# flange match the bolt pattern of 150# flange.
  • Replacement for welded multi-piece flange adapter.
Material:
  • Iron
Specifications:
  • Iron adapter meets ASTM standards.
Part Number Size Figure Description Overall
Length
HUF206400FLG 4" 206 Female Hammer Union x 125# Flange 5-1/8"
HUM206400FLG 4" 206 Male Hammer Union x 125# Flange Includes Nut And Nitrile Rubber O-Ring 5-9/16"
(with nut)
HUFALL600FLG 6" 100/200/206 125# Flange x Female Hammer Union; Connects to Figures 100/200/206 4-1/2"
HUM206600FLG 6" 206 125# Flange x Male (Includes Iron Nut and O-Ring) 4-15/16"
HUFALL800FLG 8" 100/200/206 125# Flange x Female Hammer Union; Connects to Figures 100/200/206 4-1/2"
HUM206800FLG 8" 206 125# Flange x Male (Includes Nut and O-Ring) 5-7/32"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
