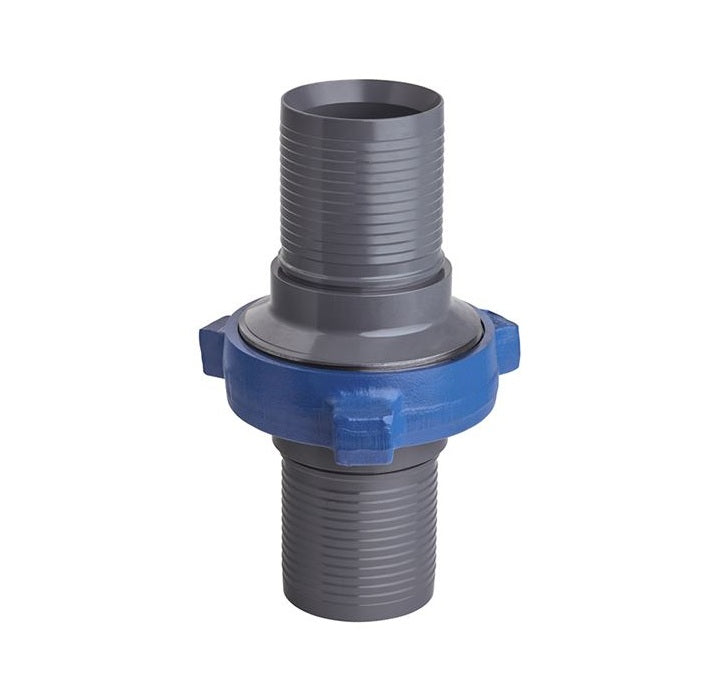

HUB206-4 by Kuriyama | HUB206 Series | Barbed Hammer Union | Figure 206 | 4" Size | 400/300 PSI CWP | Zinc Plated Iron
Kuriyama of America Inc.
HUB206 Series | Barbed Hammer Union | Figure 206
Suitable for frac water and sand slurry applications.
Interchangeable with all 206 style hammer unions.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $291.07 |
| 15–29 | $263.20 |
| 30+ | $232.24 |
Discounts applied in cart/checkout.
What are the Features?
- Suitable for frac water and sand slurry applications.
- Interchangeable with all 206 style hammer unions.
- Versatility of barbs allow for use with interlocking crimp ferrules or crimp sleeves.
- Eliminates leak paths created with threaded fittings.
What are the Materials?
- Hammer Union Nut (A-105/AISI 1020).
- Zinc plated machined malleable iron body.
- 400 PSI rating using heavy duty crimp ferrules.
- 300 PSI rating using crimp sleeves.
- Buna-N O-Ring.
| Part Number | Size (in) |
CWP Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| HUB206-4 | 4" | 400/300 PSI | 32.00 lbs |
Product Data:
Series:
MAWP:
300
Shape:
Straight
Ends Configuration:
Material(s):
