HU602300BW by Dixon Valve | Hammer Union | 602-Series | Buttweld | 6,000 NSCWP (PSI) | 3" Size | Forged Steel
HU602300BW by Dixon Valve | Hammer Union | 602-Series | Buttweld | 6,000 NSCWP (PSI) | 3" Size | Forged Steel

HU602300BW by Dixon Valve | Hammer Union | 602-Series | Buttweld | 6,000 NSCWP (PSI) | 3" Size | Forged Steel

Sale price$334.51
Buy more, save moreDiscounts applied in cart/checkout.
Features:

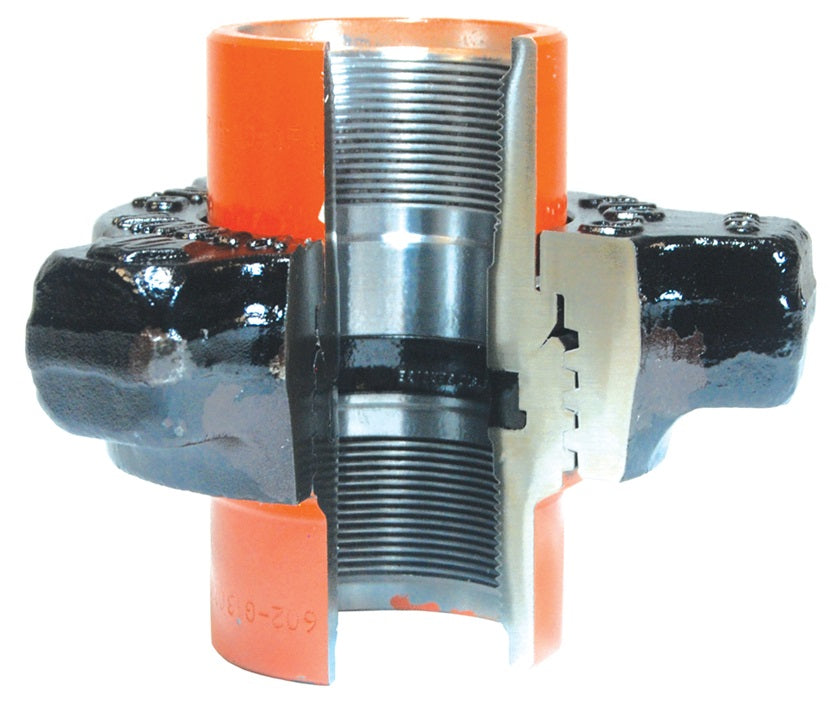

  • Lip type seal ring minimizes fluid flow turbulence while creating a pressure seal.
Construction:
  • Forged Steel.

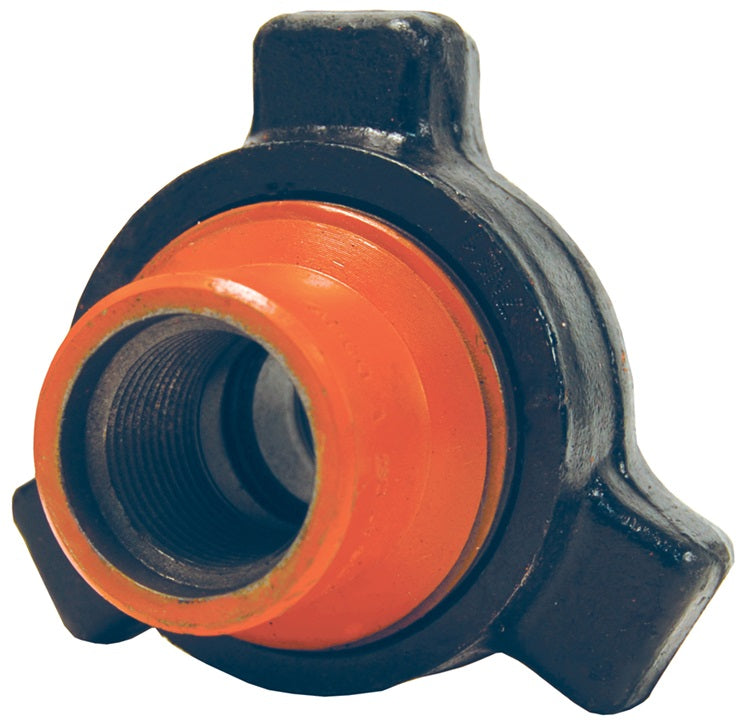

  • Orange sub, black nut.
Specifications:
  • Temperature range: -20°F to 250°F (-29°C to 121°C).
  • Up to 6,000 PSI NSCWP (non-shock cold working pressure).
  • Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
  • Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
Part Number Size Configuration NSCWP (PSI)
HU602100 1" Threaded 6000 PSI NSCWP
HU602200 2" Threaded 6000 PSI NSCWP
HU602300 3" Threaded 6000 PSI NSCWP
HU602300BW* 3" Buttweld 6000 PSI NSCWP
HU602400 4" Threaded 6000 PSI NSCWP

* Buttweld ends are schedule 80

Additional Product Data:

Series:
  • 602 Series
Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Female NPT
  • Some Ends Match

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
