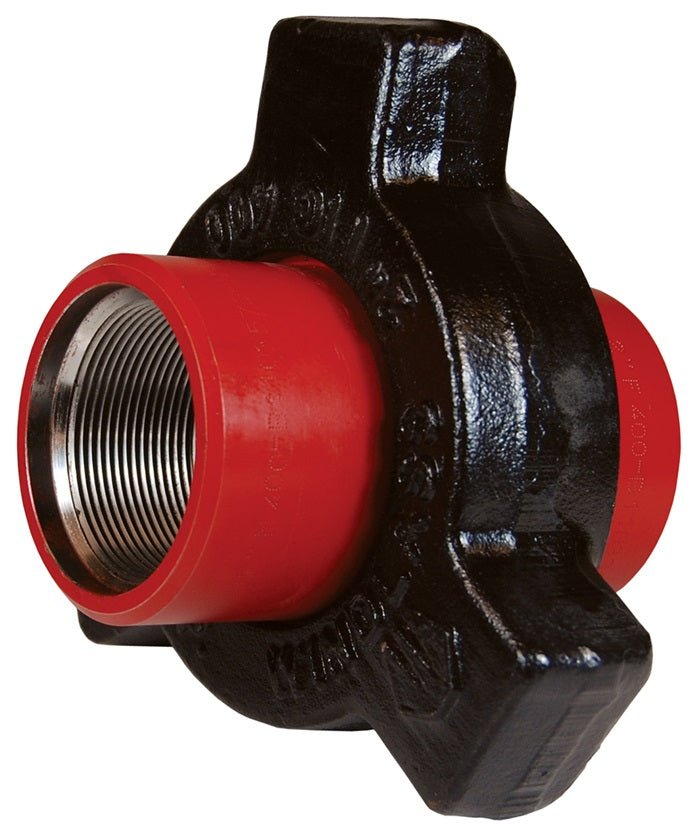

HU400200 by Dixon Valve | Hammer Union | 400-Series | Threaded | 4,000 NSCWP (PSI) | 2" Size | Forged Steel

HU400200 by Dixon Valve | Hammer Union | 400-Series | Threaded | 4,000 NSCWP (PSI) | 2" Size | Forged Steel

Sale price$117.26

Dixon Valve
Hammer Union | 400-Series

Used on manifold and line connections, pump, suction, and mud service.
Buy More, Save More!
Quantity Price Each
5–19 $110.22
20–59 $99.67
60+ $87.95
Discounts applied in cart/checkout.

Product Data:

Series:
  • 400 Series
Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Construction:
  • Forged Steel.
  • Red sub, black nut.
Specification:
  • Temperature range: -20°F to 250°F (-29°C to 121°C).
  • Up to 4,000 PSI NSCWP (non-shock cold working pressure).
  • Pressure rating given at ambient temperature 70°F/21°C.
Safety Notes:
  • Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
Part Number Size Configuration NSCWP (PSI)
HU400200 2" Threaded 4000 PSI NSCWP
HU400300 3" Threaded 4000 PSI NSCWP
HU400400 4" Threaded 4000 PSI NSCWP

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
