Kuriyama Hose Tec® HT5000 Series Smooth Bore (Lined) "Smooth Flow" Interlocked Metal Hose - Medium Weight - 300 Stainless Steel

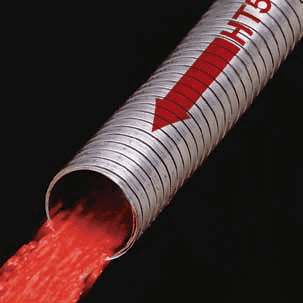

HT5000's Smooth Bore Interlocked Metal Hose combines the Hose Tec® single-strip interlocking armor construction with a second strip liner, providing a smooth interior flexible metal hose that resists material build-up; reduces internal abrasion and material degradation. Materials flow smoothly in one direction shown by arrows.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,024.03
8–14 $980.45
15+ $871.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hose Tec
Series:
  • HTSS5180 Series
Color(s):
  • Metallic

SPECIFICATIONS

Application: Abrasive Material Handling, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Grain Handling, High Temperature Material Handling, Low Temperature Material Transfer, Plastic Pellet Transfer, Pneumatic Transfer, Railcar - Bulk Unloading/Loading, Truck - Bulk Unloading/Loading, Vacuum Trucks and Equipment SAE Rating: N/A
Other Ratings: N/A Tube: 300 Stainless Steel
Reinforcement: N/A Cover: 300 Stainless Steel
Temperature Range: Max. Service Temp: Up to 1500 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Construction: An armor strip is combined with a strip of liner material and formed to create a lined flexible interlocked metal hose that offers superior strength and abrasion-resistance for longer hose life.
  • Thickness: .018" Armor / .015" Liner
  • Directional flow arrows are provided on each length.
  • Galvanized or Stainless steel liner provides additional strength and greater resistance to abrasion; extends hose life.
  • Smooth liner reduces material degradation and improves loading/unloading time.
Part Number Hose Size ID (in.) Min Inside Bend Radius (in.) Length (ft.) Weight (per foot)
HTSS5180-150X25 1-1/2" 6.00" 25ft 1.50 lbs
HTSS5180-175X25 1-3/4" 7.00" 25ft 1.70lbs
HTSS5180-200X25 2" 7.50" 25ft 1.60 lbs
HTSS5180-225X25 2-1/4" 9.50" 25ft 2.10 lbs
HTSS5180-250X25 2-1/2" 10.50" 25ft 2.30 lbs
HTSS5180-275X25 2-3/4" 12.50" 25ft 2.50 lbs
HTSS5180-300X25 3" 14.00" 25ft 2.80lbs
HTSS5180-350X25 3-1/2" 15.00" 25ft 3.20lbs
HTSS5180-400X25 4" 16.00" 25ft 3.60lbs
HTSS5180-450X25 4-1/2" 18.50" 25ft 4.00lbs
HTSS5180-500X25 5" 20.50" 25ft 4.70lbs
HTSS5180-600X25 6" 24.50" 25ft 5.60lbs
HTSS5180-700X25 7" 29.00" 25ft 6.60lbs
HTSS5180-800X25 8" 31.50" 25ft 7.70lbs
HTSS5180-1000X25 10" 39.50" 25ft 9.70lbs
HTSS5180-1200X25 12" 47.00" 25ft 11.70lbs
HTSS5180-1400X25 14" 55.00" 25ft 13.50lbs
HTSS5180-1600X25 16" 63.00" 25ft 15.00lbs
Note: If utilizing packing material, service temperatures may vary. Note: Standard coil length is 25 ft., WHEN FULLY EXTENDED; other lengths available on request.
