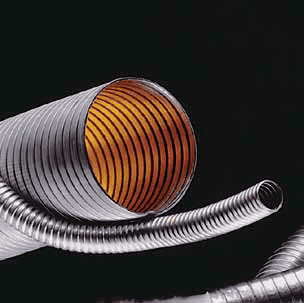

HTS4100-800X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Weight | ID: 8" | 300 Stainless Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake, Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust,Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses Railcar - Bulk Unloading/Loading, Shielding for Wiring, Spot Cooling/Air Conditioning Ducting, Steam Hose Liner, Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 300 Stainless Steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 1500 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTS4100-031X25 | 5/16" | 1.25" | 25ft | 0.10 lbs |
| HTS4100-037X25 | 3/8" | 1.50" | 25ft | 0.12 lbs |
| HTS4100-062X25 | 5/8" | 2.00" | 25ft | 0.20 lbs |
| HTS4100-075X25 | 3/4" | 2.625" | 25ft | 0.25 lbs |
| HTS4100-100X25 | 1" | 3.50" | 25ft | 0.33 lbs |
| HTS4100-125X25 | 1-1/4" | 4.00" | 25ft | N/A |
| HTS4100-150X25 | 1-1/2" | 4.75" | 25ft | N/A |
| HTS4100-162X25 | 1-5/8" | 5.00" | 25ft | 0.54lbs |
| HTS4100-175X25 | 1-3/4" | 5.25" | 25ft | 0.58lbs |
| HTS4100-187X25 | 1-7/8" | 5.50" | 25ft | 0.62lbs |
| HTS4100-200X25 | 2" | 6.00" | 25ft | 0.70lbs |
| HTS4100-225X25 | 2-1/4" | 6.75" | 25ft | 0.75lbs |
| HTS4100-250X25 | 2-1/2" | 7.50" | 25ft | 0.80lbs |
| HTS4100-275X25 | 2-3/4" | 8.75" | 25ft | 0.90lbs |
| HTS4100-300X25 | 3" | 10.00" | 25ft | 1.00lbs |
| HTS4100-325X25 | 3-1/4" | 10.50" | 25ft | 1.10lbs |
| HTS4100-350X25 | 3-1/2" | 11.00" | 25ft | 1.20lbs |
| HTS4100-400X25 | 4" | 12.50" | 25ft | 1.40lbs |
| HTS4100-450X25 | 4-1/2" | 14.00" | 25ft | 1.50lbs |
| HTS4100-500X25 | 5" | 15.00" | 25ft | 1.70lbs |
| HTS4100-525X25 | 5-1/4" | 16.00" | 25ft | 1.80lbs |
| HTS4100-550X25 | 5-1/2" | 17.50" | 25ft | 1.90lbs |
| HTS4100-600X25 | 6" | 20.00" | 25ft | 2.00lbs |
| HTS4100-625X25 | 6-1/4" | 20.50" | 25ft | 2.10lbs |
| HTS4100-650X25 | 6-1/2" | 21.00" | 25ft | 2.20lbs |
| HTS4100-700X25 | 7" | 22.00" | 25ft | 2.40lbs |
| HTS4100-725X25 | 7-1/4" | 23.00" | 25ft | 2.50lbs |
| HTS4100-750X25 | 7-1/2" | 24.00" | 25ft | 2.60lbs |
| HTS4100-800X25 | 8" | 25.00" | 25ft | 2.70lbs |
