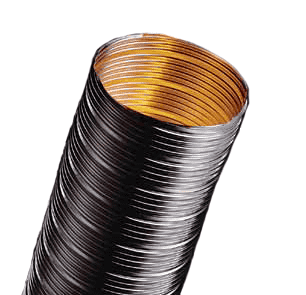

HTS3007-800X25 Hose-Tec by Kuriyama | HT3000 Series | Convoluted Air Ducting Hose | I.D : 8" | 316L Stainless Steel | 25ft Length
Kuriyama Hose Tec® HT3000 Series Convoluted Air Ducting Hose - 316L Stainless Steel
A single metal strip is corrugated and helically-wound to form a light weight, flexible metal hose that offers resistance to corrosion and maintains its shape.Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,537.02 |
| 8–14 | $1,471.62 |
| 15+ | $1,308.10 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Application: | Dust/fume collection, Hot air ducting, Industrial dryer vents, Spot cooling/air conditioning ducting | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 316L Stainless Steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 1500 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTS3007-300X25 | 3" | 3.00" | 25ft | 0.40 lbs |
| HTS3007-400X25 | 4" | 4.00" | 25ft | 0.50lbs |
| HTS3007-500X25 | 5" | 5.00" | 25ft | 0.63lbs |
| HTS3007-600X2 | 6" | 6.00" | 25ft | 0.75lbs |
| HTS3007-700X25 | 7" | 7.00" | 25ft | 0.86lbs |
| HTS3007-800X25 | 8" | 8.00" | 25ft | 1.00lbs |
| HTS3007-900X25 | 9" | 9.00" | 25ft | 1.15lbs |
| HTS3007-1000X25 | 10" | 10.00" | 25ft | 1.27lbs |
| HTS3007-1200X25 | 12" | 12.00" | 25ft | 1.50lbs |
| HTS3007-1400X25 | 14" | 14.00" | 25ft | 1.73lbs |
| HTS3007-1600X25 | 16" | 16.00" | 25ft | 2.00lbs |
| HTS3007-1800X25 | 18" | 18.00" | 25ft | 2.30lbs |
| HTS3007-2000X25 | 20" | 20.00" | 25ft | 2.50lbs |
| HTS3007-2200X25 | 22" | 22.00" | 25ft | 2.75lbs |
| HTS3007-2400X25 | 24" | 24.00" | 25ft | 3.00lbs |
