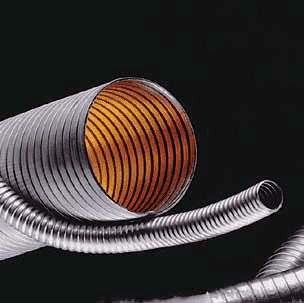

HTG4300-400X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Extra Heavy Weight | ID: 4" | Galvanized Steel | 25ft Length
Kuriyama Hose Tec® HT4000 Series Rough Bore(Unlined) "Multi-Flex" Interlocked Metal Hose - Extra Heavy Weight - Galvanized steel
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $587.47 |
| 15–29 | $531.22 |
| 30+ | $468.73 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake, Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses, Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust, Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer, Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses, Shielding for Wiring, Steam Hose Liner, Railcar - Bulk Unloading/Loading, Spot Cooling/Air Conditioning Ducting, Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Galvanized steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 750 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTG4300-200X25 | 2" | 9.50" | 25ft | 2.10 lbs |
| HTG4300-225X25 | 2-1/4" | 10.00" | 25ft | 2.20lbs |
| HTG4300-250X25 | 2-1/2" | 10.50" | 25ft | 2.30 lbs |
| HTG4300-275X25 | 2-3/4" | 11.50" | 25ft | 2.50 lbs |
| HTG4300-300X25 | 3" | 13.00" | 25ft | 2.70 lbs |
| HTG4300-325X25 | 3-1/4" | 13.50" | 25ft | 2.95 lbs |
| HTG4300-350X25 | 3-1/2" | 14.00" | 25ft | 3.20lbs |
| HTG4300-400X25 | 4" | 15.50" | 25ft | 3.60lbs |
| HTG4300-450X25 | 4-1/2" | 18.00" | 25ft | 4.10lbs |
| HTG4300-500X25 | 5" | 19.00" | 25ft | 4.50lbs |
| HTG4300-525X25 | 5-1/4" | 20.50" | 25ft | 4.75lbs |
| HTG4300-550X25 | 5-1/2" | 20.50" | 25ft | 4.75lbs |
| HTG4300-600X25 | 6" | 25.00" | 25ft | 5.40lbs |
| HTG4300-625X25 | 6-1/4" | 26.00" | 25ft | 5.60lbs |
| HTG4300-650X25 | 6-1/2" | 26.50" | 25ft | 5.80lbs |
| HTG4300-700X25 | 7" | 28.00" | 25ft | 6.30lbs |
| HTG4300-725X25 | 7-1/4" | 29.00" | 25ft | 6.50lbs |
| HTG4300-750X25 | 7-1/2" | 29.00" | 25ft | 6.50lbs |
| HTG4300-800X25 | 8" | 31.00" | 25ft | 7.20lbs |
| HTG4300-900X25 | 9" | 34.00" | 25ft | 7.60lbs |
| HTG4300-950X25 | 9-1/2" | 35.50" | 25ft | 7.80lbs |
| HTG4300-1000X25 | 10" | 37.00" | 25ft | 9.00lbs |
| HTG4300-1100X25 | 11" | 39.50" | 25ft | 9.90lbs |
| HTG4300-1120X25 | 11-1/4" | 40.50" | 25ft | 10.20lbs |
| HTG4300-1150X25 | 11-1/2" | 41.50" | 25ft | 10.40lbs |
| HTG4300-1200X25 | 12" | 42.00" | 25ft | 10.80lbs |
| HTG4300-1400X25 | 14" | 57.50" | 25ft | 12.60lbs |
| HTG4300-1600X25 | 16" | 75.00" | 25ft | 14.40lbs |
