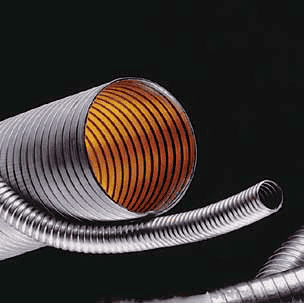

HTG4250-500X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Heavy Weight | ID: 5" | Galvanized Steel | 25ft Length
Kuriyama Hose Tec® HT4000 Series Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose - Heavy Weight - Galvanized Steel
Package Quantity: 25 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Application: | Abrasive Material Handling, Air Intake Supply; Fresh Air Intake Bend Restrictor, Bop (Blow Out Protection) for Hydraulic, Cryogenic and Other High Pressure Hoses Bulk Unloading/Loading (Railcar/Truck), Dry Bulk Transfer (Railcar/Truck/In-Plant), Dust/Fume Collection, Engine Exhaust, Environmental/Industrial Clean-Up, Fly Ash/Soda Ash Handling, Fume Hood Exhaust, Garage Fume Exhaust, Grain Handling, High Temperature Material Handling, Hot Air Blower/Suction, Hot Air Ducting, Industrial Dryer Vents, Liner for Corrugated/Braided Assemblies, Low Temperature Material Transfer Oven/Kiln Exhaust, Plastic Pellet Transfer, Pneumatic Transfer, Protective Armor/Shielding for Hoses Shielding for Wiring, Steam Hose Liner, Railcar - Bulk Unloading/Loading, Spot Cooling/Air Conditioning Ducting Truck - Bulk Unloading/Loading, Truck Exhaust/Flexible Tailpipe Exhaust, Vacuum Trucks and Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Galvanized Steel |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | Max. Service Temp: Up to 750 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Hose Size ID (in.) | Min Inside Bend Radius (in.) | Length (ft.) | Weight (per foot) |
|---|---|---|---|---|
| HTG4250-200X25 | 2" | 9.00" | 25ft | 1.60 lbs |
| HTG4250-225X25 | 2-1/4" | 9.50" | 25ft | 1.80lbs |
| HTG4250-250X25 | 2-1/2" | 10.00" | 25ft | 2.00 lbs |
| HTG4250-275X25 | 2-3/4" | 11.00" | 25ft | 2.15 lbs |
| HTG4250-300X25 | 3" | 12.00" | 25ft | 2.30 lbs |
| HTG4250-325X25 | 3-1/4" | 13.00" | 25ft | 2.50 lbs |
| HTG4250-350X25 | 3-1/2" | 13.50" | 25ft | 2.70lbs |
| HTG4250-400X25 | 4" | 15.00" | 25ft | 3.10lbs |
| HTG4250-450X25 | 4-1/2" | 17.00" | 25ft | 3.50lbs |
| HTG4250-500X25 | 5" | 18.00" | 25ft | 3.90lbs |
| HTG4250-525X25 | 5-1/4" | 19.50" | 25ft | 4.10lbs |
| HTG4250-550X25 | 5-1/2" | 21.00" | 25ft | 4.30lbs |
| HTG4250-600X25 | 6" | 23.50" | 25ft | 4.70lbs |
| HTG4250-625X25 | 6-1/4" | 24.50" | 25ft | 4.90lbs |
| HTG4250-650X25 | 6-1/2" | 25.00" | 25ft | 5.10lbs |
| HTG4250-700X25 | 7" | 26.50" | 25ft | 5.50lbs |
| HTG4250-725X25 | 7-1/4" | 27.50" | 25ft | 5.70lbs |
| HTG4250-750X25 | 7-1/2" | 28.00" | 25ft | 5.85lbs |
| HTG4250-800X25 | 8" | 29.50" | 25ft | 6.20lbs |
| HTG4250-900X25 | 9" | 32.00" | 25ft | 6.60lbs |
| HTG4250-950X25 | 9-1/2" | 33.50" | 25ft | 6.80lbs |
| HTG4250-1000X25 | 10" | 34.50" | 25ft | 7.00lbs |
| HTG4250-1100X25 | 11" | 37.50" | 25ft | 7.40lbs |
| HTG4250-1120X25 | 11-1/4" | 38.00" | 25ft | 7.50lbs |
| HTG4250-1150X25 | 11-1/2" | 38.50" | 25ft | 7.60lbs |
| HTG4250-1200X25 | 12" | 40.00" | 25ft | 7.80lbs |
| HTG4250-1400X25 | 14" | 55.00" | 25ft | 9.40lbs |
| HTG4250-1600X25 | 16" | 62.50" | 25ft | 11.00lbs |
