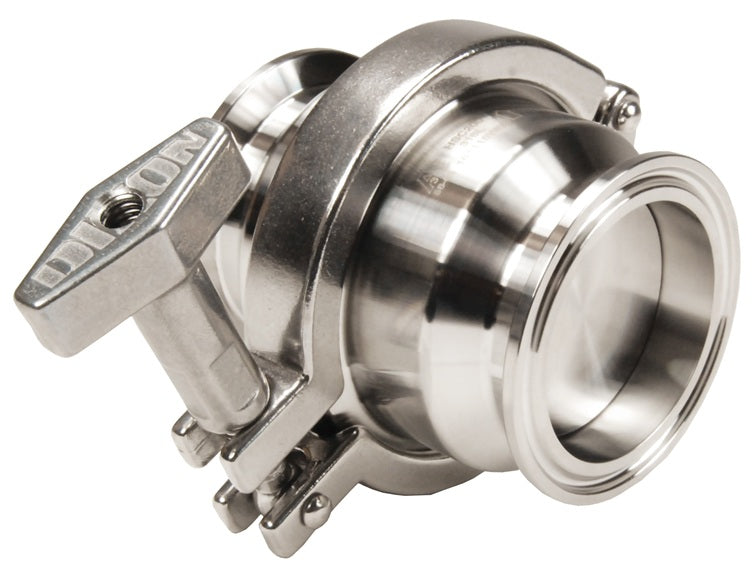

HSCE150BB Dixon Valve HSC Spring Check Valve - 1-1/2" Weld Connection - EPDM Gasket - 316L Stainless Steel

HSCE150BB Dixon Valve HSC Spring Check Valve - 1-1/2" Weld Connection - EPDM Gasket - 316L Stainless Steel

Sale price$223.57

Dixon Sanitary Fittings HSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.

In stock
Buy More, Save More!
Quantity Price Each
5–19 $210.16
20–59 $190.03
60+ $178.86
Discounts applied in cart/checkout.
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050BB 1/2" 10.0 PSI 145 PSI
HSCE075BB 3/4" 4.0 PSI 145 PSI
HSCE100BB 1" 2.5 PSI 145 PSI
HSCE150BB 1-1/2" 1.0 PSI 145 PSI
HSCE200BB 2" 1.5 PSI 145 PSI
HSCE250BB 2-1/2" 0.8 PSI 145 PSI
HSCE300BB 3" 0.5 PSI 145 PSI
HSCE400BB 4" 0.4 PSI 145 PSI

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Weld End
  • 1-1/2in Weld End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
