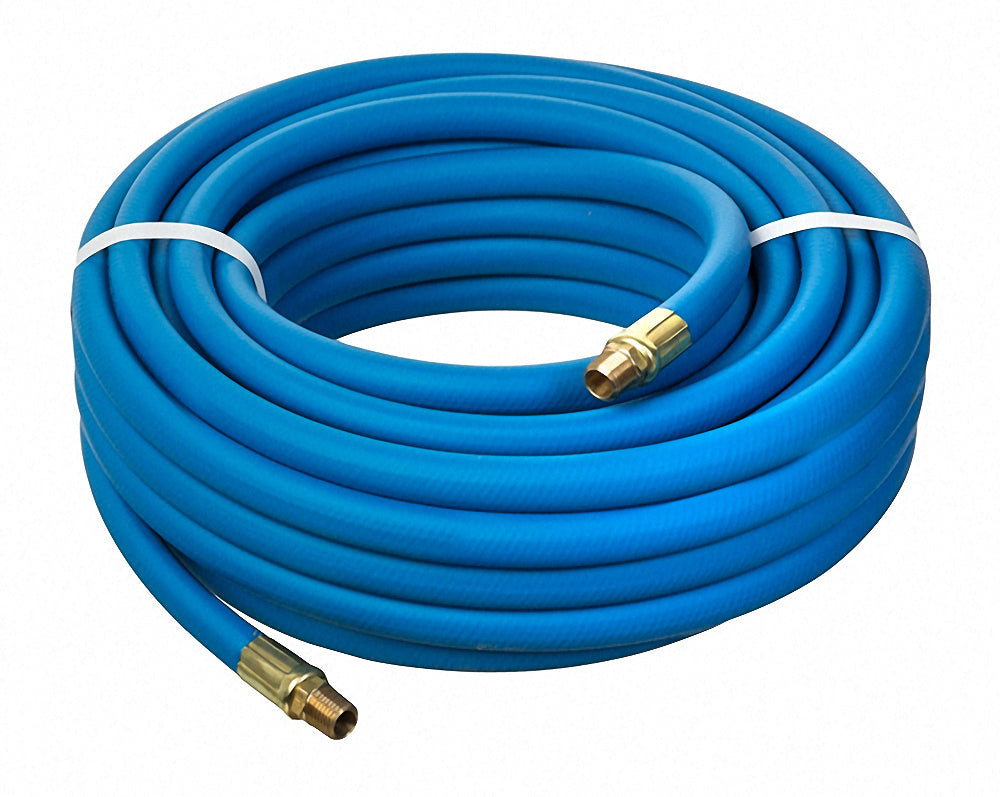

HS1136-04X100 Kuri-Tec by Kuriyama | POLYAIR® | HS1136 Series | Multi-Purpose Air Hose Assembly | 1/4" ID | 1/4" x 1/4" Male NPT | Blue | 100ft Length
Kuri Tec® by Kuriyama
POLYAIR® | HS1136 Series | Multi-Purpose Air Hose Assembly
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $76.31 |
| 20–59 | $69.00 |
| 60+ | $60.89 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Air Applications | ||
|---|---|---|---|
| Tube: | PVC | Reinforcement: | - |
| Cover: | PVC | Service Temperature Range: | -40°F (-40°C) to +150°F (+65°C) |
| Specifications: | Phthalate Free | ||
| Other Features: | |||
|
|||
| HS1131 Series | Yellow | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Nominal ID | Nominal OD | Fittings | ||||
| in | in | ||||||||
| HS1131-04X25 | HS1131-04X50 | HS1131-04X100 | 1/4" | 0.500" | 1/4" x 1/4" Male NPT | ||||
| HS1131-06X25 | HS1131-06X50 | HS1131-06X100 | 3/8" | 0.625" | 3/8" x 1/4" Male NPT | ||||
| HS1131D-08X25 | HS1131D-08X50 | HS1131D-08X100 | 1/2" | 0.813" | 1/2" x 1/2" Male NPT | ||||
| HS1131E-12X25 | HS1131E-12X50 | HS1131E-12X100 | 3/4" | 1.125" | 3/4" x 3/4" Male NPT | ||||
| HS1131F-16X25 | HS1131F-16X50 | HS1131F-16X100 | 1" | 1.406" | 1" x 1" Male NPT | ||||
| HS1134 Series | Red | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Nominal ID | Nominal OD | Fittings | ||||
| in | in | ||||||||
| HS1134-04X25 | HS1134-04X50 | HS1134-04X100 | 1/4" | 0.500" | 1/4" x 1/4" Male NPT | ||||
| HS1134-05X25 | HS1134-05X50 | HS1134-05X100 | 5/16" | 0.625" | 5/16" x 1/4" Male NPT | ||||
| HS1134-06X25 | HS1134-06X50 | HS1134-06X100 | 3/8" | 0.625" | 3/8" x 1/4" Male NPT | ||||
| HS1134D-08X25 | HS1134D-08X50 | HS1134D-08X100 | 1/2" | 0.813" | 1/2" x 1/2" Male NPT | ||||
| HS1134E-10X25 | HS1134E-10X50 | HS1134E-10X100 | 5/8" | 0.906" | 5/8" x 3/4" Male NPT | ||||
| HS1134E-12X25 | HS1134E-12X50 | HS1134E-12X100 | 3/4" | 1.125" | 3/4" x 3/4" Male NPT | ||||
| HS1134F-16X25 | HS1134F-16X50 | HS1134F-16X100 | 1" | 1.406" | 1" x 1" Male NPT | ||||
| HS1136 Series | Blue | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Nominal ID | Nominal OD | Fittings | ||||
| in | in | ||||||||
| HS1136-04X25 | HS1136-04X50 | HS1136-04X100 | 1/4" | 0.500" | 1/4" x 1/4" Male NPT | ||||
| HS1136-06X25 | HS1136-06X50 | HS1136-06X100 | 3/8" | 0.625" | 3/8" x 1/4" Male NPT | ||||
| HS1136D-08X25 | HS1136D-08X50 | HS1136D-08X100 | 1/2" | 0.813" | 1/2" x 1/2" Male NPT | ||||
| HS1136E-12X25 | HS1136E-12X50 | HS1136E-12X100 | 3/4" | 1.125" | 3/4" x 3/4" Male NPT | ||||
| HS1136F-16X25 | HS1136F-16X50 | HS1136F-16X100 | 1" | 1.406" | 1" x 1" Male NPT | ||||
| HS1138 Series | Grey | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
Nominal ID | Nominal OD | Fittings | ||||
| in | in | ||||||||
| HS1138-04X25 | HS1138-04X50 | HS1138-04X100 | 1/4" | 0.500" | 1/4" x 1/4" Male NPT | ||||
| HS1138-06X25 | HS1138-06X50 | HS1138-06X100 | 3/8" | 0.625" | 3/8" x 1/4" Male NPT | ||||
| HS1138D-08X25 | HS1138D-08X50 | HS1138D-08X100 | 1/2" | 0.813" | 1/2" x 1/2" Male NPT | ||||
| HS1138E-12X25 | HS1138E-12X50 | HS1138E-12X100 | 3/4" | 1.125" | 3/4" x 3/4" Male NPT | ||||
