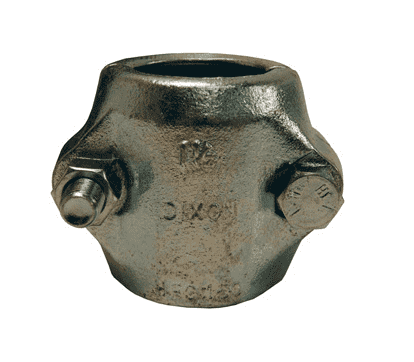

HRC-100 Dixon Valve 1" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 1-37/64" to 1-41/64"

HRC-100 Dixon Valve 1" Plated Iron Hydraulic Hose Coupling Clamp - Hose OD Range: 1-37/64" to 1-41/64"

Sale price$34.59

Hydraulic Hose Couplings - Clamps for only 1 or 2 Wire Hydraulic Hoses - Plated Iron
Buy More, Save More!
Quantity Price Each
10–39 $32.51
40–79 $29.40
80+ $25.94
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Plated Iron
Minimum Clamp I.D.:

1.578125"

Maximum Clamp I.D.:

1.640625"
Features:
  • For use only on 1 or 2 wire hydraulic hoses.
  • This clamp should not be used on 4 or 6 wire hydraulic hose even when hose falls within recommended ranges.
Part Number Hose ID Hose OD Range Torque in ft. lbs. Weight (Lbs.)
From: To:
HRC-037 3/8" 50/64" 52/64" 18 0.3410
HRC-050 1/2" 57/64" 1" 18 0.4400
HRC-075 3/4" 1-16/64" 1-20/64" 36 0.8050
HRC-100 1" 1-37/64" 1-41/64" 64 1.0800
HRC-125 1-1/4" 1-54/64" 1-62/64" 90 2.5600
HRC-150 1-1/2" 2-10/64" 2-18/64" 90 2.2750
HRC-200 2" 2-43/64" 2-52/64" 90 3.1400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
