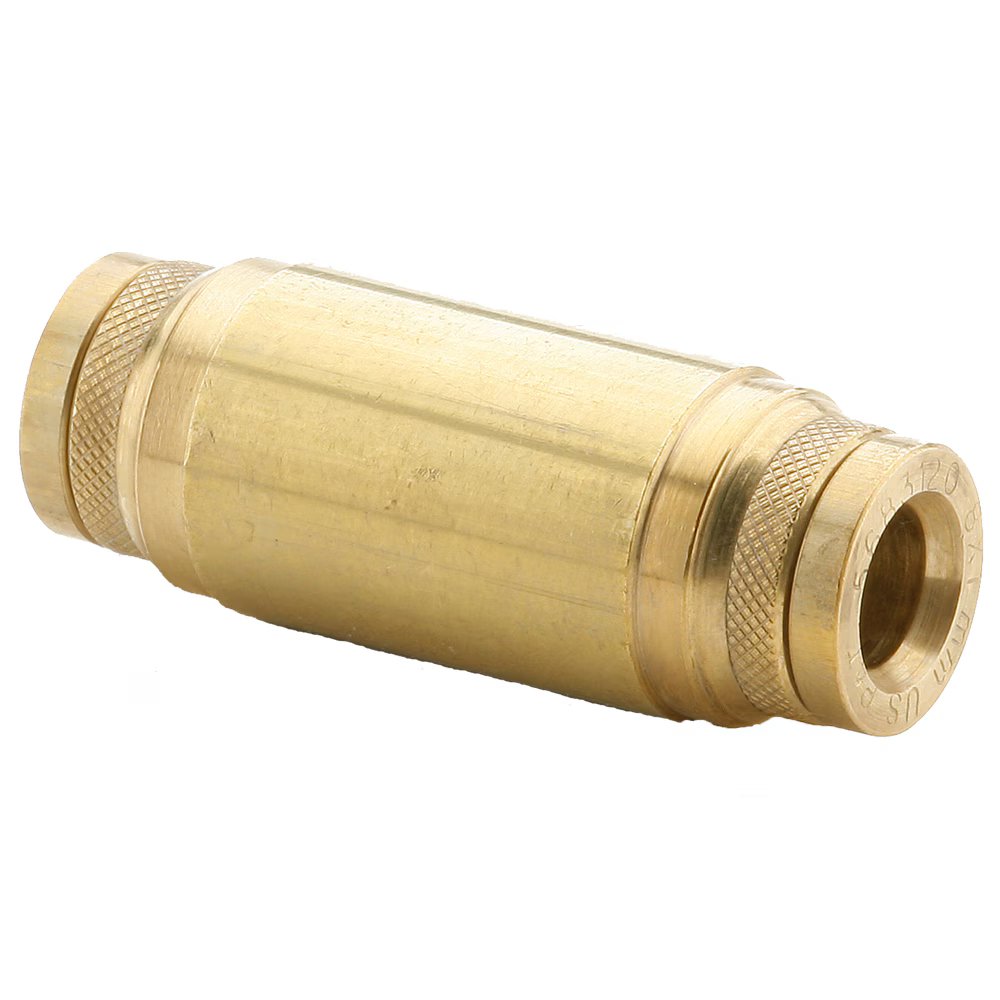

HPMTB12 by Parker | Tube to Tube Fitting | Union | 12 mm Push-to-Connect | 51.7 mm Length | Straight | Brass | Pack of 10

HPMTB12 by Parker | Tube to Tube Fitting | Union | 12 mm Push-to-Connect | 51.7 mm Length | Straight | Brass | Pack of 10

Sale price$332.36

by Parker Hannifin
Metric Prestomatic Fittings:Union HPMTB

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $312.42
15–29 $282.51
30+ $249.27
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Prestomatic
Series:
  • HPMTB Series
Shape:

Straight
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets DIN 74324
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • DIN 73378 Virgin Nylon
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size L OD
HPMTB6 6 mm 45.2 mm 15.9 mm
HPMTB8 8 mm 45.3 mm 17.5 mm
HPMTB10 10 mm 51.7 mm 22.2 mm
HPMTB12 12 mm 51.7 mm 22.2 mm
