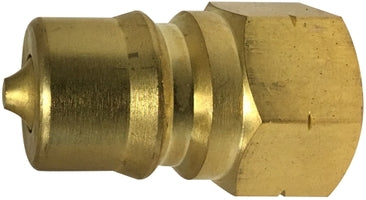

HNV34MB by Midland | Hydraulic Quick Disconnect | ISO-B Female Pipe Plug | 3/4" Body Size | 3/4" Female NPT | Brass

HNV34MB by Midland | Hydraulic Quick Disconnect | ISO-B Female Pipe Plug | 3/4" Body Size | 3/4" Female NPT | Brass

Sale price$33.89

Midland Industries
Hydraulic Quick Disconnects: ISO-B Interchange
Buy More, Save More!
Quantity Price Each
10–39 $31.86
40–79 $28.81
80+ $25.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male ISO-B QD Interchange
  • 3/4in Female NPT
Material(s):
  • Brass
Features:
  • Poppet valves to prevent uncoupled leakage.
  • Critical parts are induction hardened for durability.
  • Dependable ball-locking mechanism holds the maling halves together.
  • Socket and plug are precision machined from solid barstock.
  • Standard nitrile seals temp range -40°F to +250°F.
Interchanges:
Parker 60 Series Snap-tite 72 Series Dixon 'H' Series Hansen HK Series Aeroquip / Eaton FDH5
ISO-A Female Pipe Coupler (Steel) ISO-A Female Pipe Plug (Steel)
Part Number Body Size Female NPT Max PSI Burst Pressure Part Number Body Size Female NPT Max PSI Burst Pressure
HNV14F
(HNV-14-F) 		1/4" 1/4" 5,000 PSI 22,500 PSI HNV14M
(HNV-14-M) 		1/4" 1/4" 5,000 PSI 22,500 PSI
HNV38F
(HNV-38-F) 		3/8" 3/8" 4,000 PSI 16,500 PSI HNV38M
(HNV-38-M) 		3/8" 3/8" 4,000 PSI 16,500 PSI
HNV12F
(HNV-12-F) 		1/2" 1/2" 4,000 PSI 16,000 PSI HNV12M
(HNV-12-M) 		1/2" 1/2" 4,000 PSI 16,000 PSI
HNV34F
(HNV-34-F) 		3/4" 3/4" 4,000 PSI 16,500 PSI HNV34M
(HNV-34-M) 		3/4" 3/4" 4,000 PSI 16,500 PSI
HNV1F
(HNV-1-F) 		1" 1" 4,000 PSI 16,000 PSI HNV1M
(HNV-1-M) 		1" 1" 4,000 PSI 16,000 PSI
ISO-B Female Pipe Coupler (Brass) ISO-B Female Pipe Plug (Brass)
Part Number Body Size Female NPT Max PSI Burst Pressure Part Number Body Size Female NPT Max PSI Burst Pressure
HNV14FB
(HNV-14-F-B) 		1/4" 1/4" 3,000 PSI 15,000 PSI HNV14MB
(HNV-14-M-B) 		1/4" 1/4" 3,000 PSI 15,000 PSI
HNV38FB
(HNV-38-F-B) 		3/8" 3/8" 2,500 PSI 12,000 PSI HNV38MB
(HNV-38-M-B) 		3/8" 3/8" 2,500 PSI 12,000 PSI
HNV12FB
(HNV-12-F-B) 		1/2" 1/2" 2,500 PSI 11,500 PSI HNV12MB
(HNV-12-M-B) 		1/2" 1/2" 2,500 PSI 11,500 PSI
HNV34FB
(HNV-34-F-B) 		3/4" 3/4" 2,000 PSI 12,000 PSI HNV34MB
(HNV-34-M-B) 		3/4" 3/4" 2,000 PSI 12,000 PSI
HNV1FB
(HNV-1-F-B) 		1" 1" 1,500 PSI 8,500 PSI HNV1MB
(HNV-1-M-B) 		1" 1" 1,500 PSI 8,500 PSI

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
