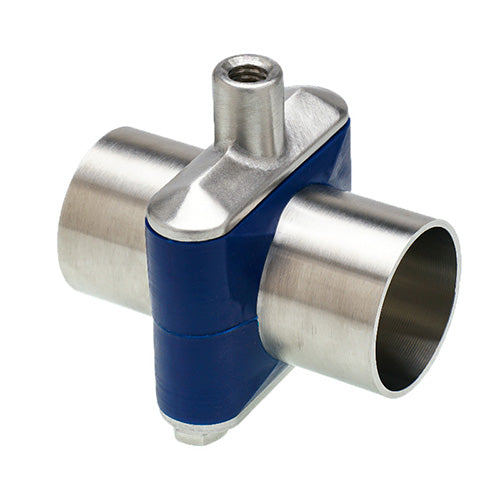

HM-400P-304ZP by ACL Hygienic | Zero Puddle Silicone Hang Mount w/ Tight Fit | 4" Pipe Size x 1/2" Thread Size | Blue | 304 Stainless Steel

HM-400P-304ZP by ACL Hygienic | Zero Puddle Silicone Hang Mount w/ Tight Fit | 4" Pipe Size x 1/2" Thread Size | Blue | 304 Stainless Steel

Sale price$87.95

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Hang Mount
Buy More, Save More!
Quantity Price Each
5–19 $82.67
20–59 $74.76
60+ $65.96
Discounts applied in cart/checkout.

Product Data:

Shape:

["Straight"]

Material(s):
  • Silicone
  • 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered
Features:
  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
  • There are no exposed threads or openings
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement
Hang Mount: FOR ATTACHMENT: Use Shielded Rod, solid rod with threaded end(s) or all thread rod
Part Number
(anchor/tight fit)		 Part Number
(guide/loose fit)		 Pipe Size Line OD H L W CL Thread
HM-050P-304ZP HM-050P-316ZPG 1/2" 0.84" 2.29" 1.93" 0.75" 1.55" 3/8"-16
HM-075P-304ZP HM-075P-304ZPG 3/4" 1.05" 2.29" 1.93" 0.75" 1.55" 3/8-16"
HM-100P-304ZP HM-100P-304ZPG 1" 1.315" 2.79" 2.49" 0.75" 1.80" 3/8-16"
HM-125P-304ZP HM-125P-304ZPG 1-1/4" 1.66" 3.29" 2.99" 0.88" 2.05" 3/8-16"
HM-150P-304ZP HM-150P-304ZPG 1-1/2" 1.90" 3.29" 2.99" 0.88" 2.09" 3/8-16"
HM-200P-304ZP HM-200P-304ZPG 2" 2.375" 5.59" 3.36" 0.88" 2.09" 1/2-13"
HM-250P-304ZP HM-250P-304ZPG 2-1/2" 2.875" 6.02" 4.80" 0.88" 3.18" 1/2-13"
HM-300P-304ZP HM-300P-304ZPG 3" 3.5" 5.59" 5.59" 1" 3.60" 1/2-13"
HM-400P-304ZP HM-400P-304ZPG 4" 4.5" 6.68" 5.10" 1" 4.21" 5/8-11"
