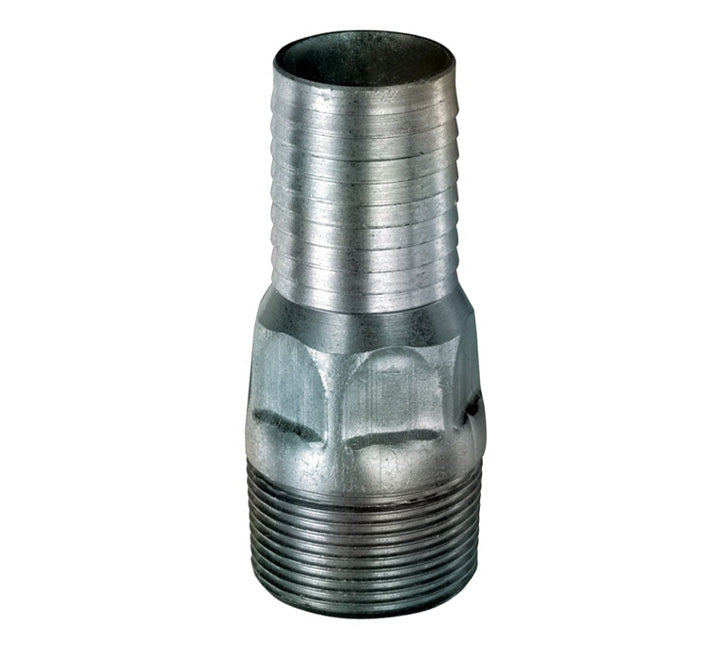

HEX-STN050 by Kuriyama | HEX-STN Series | Combination Hose Nipple with Hex | 1/2" Male NPT x 1/2" Hose Barb | Plain Steel
Minimum Order Quantity: 5 Units
Kuriyama of America Inc.
Combination Hose Nipple with Hex | HEX-STN Series | Male NPT x Hose Barb | Plain Steel
Versatile hose connectors designed to connect hose and pipes of the same thread size.
Hex design allows for tighterning with wrench.
Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.75 |
| 40–79 | $5.20 |
| 80+ | $4.59 |
Discounts applied in cart/checkout.
What are the Features?
- Versatile hose connectors designed to connect hose and pipes of the same thread size.
- Hex design allows for tighterning with wrench.
- Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
- Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.
What are the Materials?
- Plain Steel - Complies with ASTM A53 B welded pipe.
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| HEX-STN050 | 1/2" | 125 PSI | 0.14 lbs |
| HEX-STN075 | 3/4" | 125 PSI | 0.22 lbs |
| HEX-STN100 | 1" | 125 PSI | 0.32 lbs |
| HEX-STN125 | 1-1/4" | 125 PSI | 0.56 lbs |
Product Data:
Series:
MAWP:
125
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
