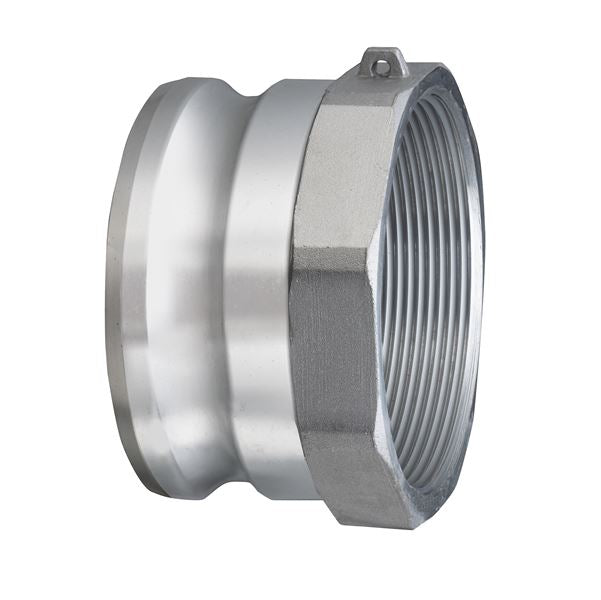

HDAL-A801 by Kuriyama | AL-A Series | Part A | Cam & Groove Adapter | 8" Adapter x 8" Female NPT | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-A Series | Part A | Adapter x Female NPT | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $182.35 |
| 20–59 | $164.89 |
| 60+ | $145.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
50
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- Easy to install and disassemble.
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Coupler Size (in) |
Thread Size Female NPT (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-A050 | 1/2" | 1/2" | 250 PSI | B211 Grade 6063 | 0.10 lbs |
| AL-A075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.13 lbs |
| AL-A100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.12 lbs |
| AL-A125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.20 lbs |
| AL-A150 | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.28 lbs |
| AL-A200 | 2" | 2" | 250 PSI | B85 Grade 383 | 0.38 lbs |
| AL-A2015 | 2" | 1-1/2" | 250 PSI | B26, Grade 713 | 0.44 lbs |
| AL-A2030 | 2" | 3" | 250 PSI | B26, Grade 713 | 0.75 lbs |
| AL-A250 | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 0.58 lbs |
| AL-A300 | 3" | 3" | 150 PSI | B85 Grade 383 | 0.70 lbs |
| AL-A3020 | 3" | 2" | 150 PSI | B26, Grade 713 | 0.88 lbs |
| AL-A3040 | 3" | 4" | 150 PSI | B26, Grade 713 | 1.37 lbs |
| AL-A400 | 4" | 4" | 150 PSI | B85 Grade 383 | 1.58 lbs |
| AL-A4030 | 4" | 3" | 150 PSI | B26, Grade 713 | 1.61 lbs |
| AL-A500 | 5" | 5" | 75 PSI | B108-92 356 | 1.74 lbs |
| AL-A600 | 6" | 6" | 75 PSI | B85 Grade 383 | 2.95 lbs |
| AL-A800* | 8" | 8" | 50 PSI | B108-92 356 | 7.58 lbs |
| AL-A1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 9.88 lbs |
| HDAL-A801* | 8" | 8" | 50 PSI | B26, Grade 713 | 9.48 lbs |
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-A800. If the measurement is more than 9" it is HDAL-A801.
