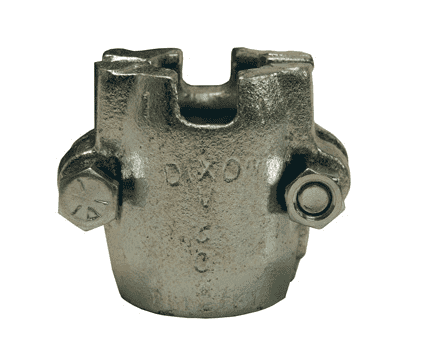

HD1-3 Dixon Valve Plated Iron Hydraulic Hose Coupling Clamp - 3/8" Hose ID - Hose OD Range: 48/64" to 50/64"

HD1-3 Dixon Valve Plated Iron Hydraulic Hose Coupling Clamp - 3/8" Hose ID - Hose OD Range: 48/64" to 50/64"

Sale price$29.36

Hydraulic Hose Couplings - Clamps for 1 Wire Hydraulic Hoses - Plated Iron
Buy More, Save More!
Quantity Price Each
10–39 $27.60
40–79 $24.96
80+ $23.49
Discounts applied in cart/checkout.
Features:
  • For use only on 1 wire hydraulic hoses.
Part Number Hose ID Hose OD Range Torque in ft. lbs. Weight (Lbs.)
From: To:
HD1-3 3/8" 48/64" 50/64" 12 0.3095
HD1-4 1/2" 56/64" 60/64" 18 0.3800
HD1-6 3/4" 1-10/64" 1-14/64" 18 0.5200
HD1-8 1" 1-29/64" 1-35/64" 36 1.0600

Product Data:

Shape:

Straight

Material(s):
  • Plated Iron
Minimum Clamp I.D.:

0.75"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Explore Dixon Valve & Coupling
