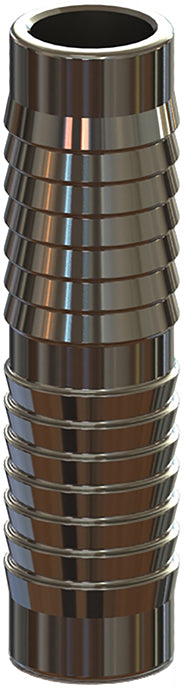

HCSS-4 by Campbell Fittings | Mender | 1" Hose Barb x 1" Hose Barb | 316 Stainless Steel

HCSS-4 by Campbell Fittings | Mender | 1" Hose Barb x 1" Hose Barb | 316 Stainless Steel

Sale price$59.13

by Campbell
Combination Nipples & Menders:HCSS Expander Nipple
Buy More, Save More!
Quantity Price Each
10–39 $55.58
40–79 $50.26
80+ $44.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • HCSS Series
Shape:

Straight

Ends Configuration:
  • 1in
  • 1in
  • Some Ends Match
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HCSS-3 3/4"
HCSS-4 1"
HCSS-5 1-1/4"
HCSS-6 1-1/2"
HCSS-8 2"
HCSS-12 3"
HCSS-16 4"
HCSS-24 6"
