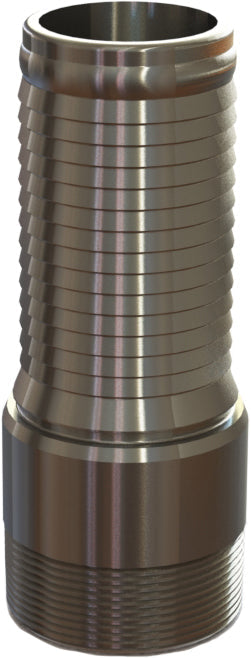

HALPS-6C by Campbell Fittings | SCH. 80 Threaded Shank | 1-1/2" Male NPT Thread x 1-1/2" Hose Barb | Long | Plated Steel

HALPS-6C by Campbell Fittings | SCH. 80 Threaded Shank | 1-1/2" Male NPT Thread x 1-1/2" Hose Barb | Long | Plated Steel

Sale price$49.59

by Campbell
Crimpnology Nipples:HALPS SCH. 80 Threaded Long Shank
Buy More, Save More!
Quantity Price Each
10–39 $46.61
40–79 $42.15
80+ $37.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • HALPS Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Male NPT
  • 1-1/2in Hose Barb
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
  • Long Shank Crimpnology nipples provide excellent sealing and retention for high-pressure application (See ratings chart)
Part Number Hose Size
HALPS-6C 1-1/2"
HALPS-8C 2"
HALPS-10C 2-1/2"
HALPS-12C 3"
HALPS-16C 4"
