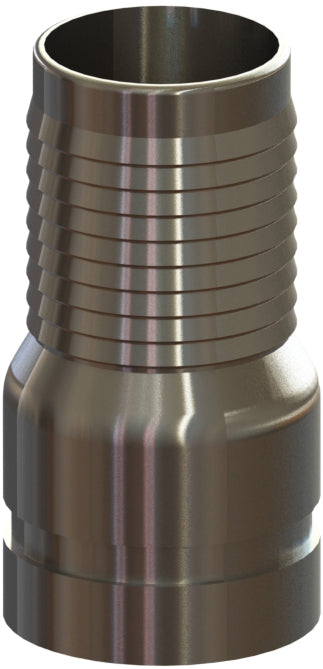

HAGS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | Carbon Steel

HAGS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | Carbon Steel

Sale price$33.98

by Campbell
Combination Nipples & Menders:HAGS Grooved Combination Nipple
Buy More, Save More!
Quantity Price Each
10–39 $31.94
40–79 $28.88
80+ $25.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • HAGS Series
Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Hose Barb
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAGS-3 3/4"
HAGS-4 1"
HAGS-5 1-1/4"
HAGS-6 1-1/2"
HAGS-8 2"
HAGS-10 2-1/2"
HAGS-12 3"
HAGS-16 4"
HAGS-20 5"
HAGS-24 6"
HAGS-32 8"
HAGS-40 10"
HAGS-48 12"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
