GW60-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 62 | Straight | Trivalent Zinc Plating

GW60-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 62 | Straight | Trivalent Zinc Plating

Sale price$67.76

Couplamatic Systems Inc.
GW Series - Code 62 Split Flange - Straight
Buy More, Save More!
Quantity Price Each
10–39 $63.69
40–79 $57.60
80+ $50.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 1-1/4in Code 62 Flange
  • 1-1/4in Hose Barb
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

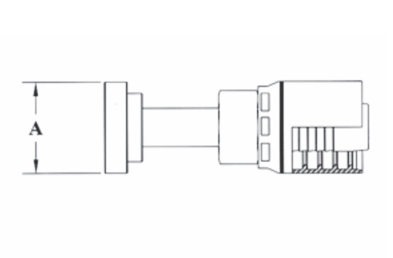

Part Number Hose ID Flange Size A-Dia Inches Cross Reference Part Numbers
Weatherhead 430U
GW60-12x12 3/4" 3/4" 1.62" 43012U-D12
GW60-12x16 3/4" 1" 1.88" 43012U-D16
GW60-16x16 1" 1" 1.88" 43016U-D16
GW60-16x20 1" 1-1/4" 2.12" 43016U-D20
GW60-20x20 1-1/4" 1-1/4" 2.12" 43020U-D20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
