GW46-12X12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x G-3/4-14 Thread Female Swivel | 3/4" BSPP | 90° Elbow | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
GW Series — 100R12 No-Skive Spiral
GW46 GW Series — BSPP, Female Swivel, 90° Elbow
GW46 is the BSPP, Female Swivel, 90° Elbow configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.
1
What are the main product features?
- NO SKIVE REQUIRED
- The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
- Trivalent Zinc Plating
- G. as part of thread size is ISO designation for parallel thread
- Bite to the wire — the shell grips the hose reinforcement directly.
- Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2
Which sizes are available?

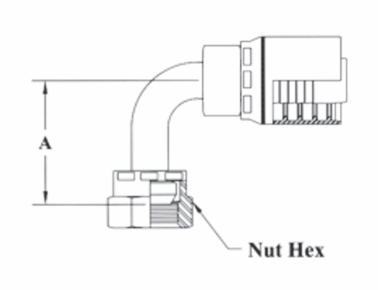

| Part Number | Hose ID | BSPP Size | Thread Size | A-Drop Inches | Nut Hex |
|---|---|---|---|---|---|
| GW46-12x12 | 3/4" | 3/4" | G-3/4-14 | 2.55" | 1-1/4" |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
