GW30-12x16 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating
Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.74 |
| 40–79 | $37.74 |
| 80+ | $33.30 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

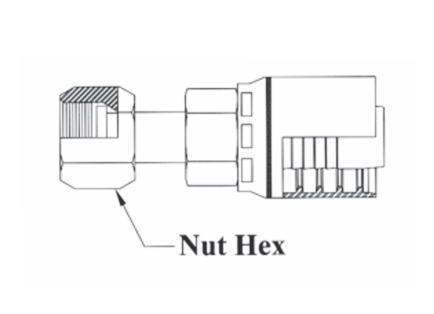

| Part Number | Hose ID | Tube Size | Thread Size | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|
| Weatherhead 430U | |||||
| GW30-8x8 | 1/2" | 1/2" | 13/16x16 | 15/16" | 43008U-S68 |
| GW30-8x10 | 1/2" | 5/8" | 1x14 | 1-1/8" | 43008U-S70 |
| GW30-8x12 | 1/2" | 3/4" | 1-3/16x12 | 1-3/8" | - |
| GW30-12x10 | 3/4" | 5/8" | 1x14 | 1-1/8" | 43012U-S70 |
| GW30-12x12 | 3/4" | 3/4" | 1-3/16x12 | 1-3/8" | 43012U-S72 |
| GW30-12x16 | 3/4" | 1" | 1-7/16x12 | 1-5/8" | 43012U-S76 |
| GW30-16x16 | 1" | 1" | 1-7/16x12 | 1-5/8" | 43016U-S76 |
| GW30-20x20 | 1-1/4" | 1-1/4" | 1-11/16x12 | 1-7/8" | 43020U-S80 |
| GW30-24x24 | 1-1/2" | 1-1/2" | 2x12 | 2-1/4" | - |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
