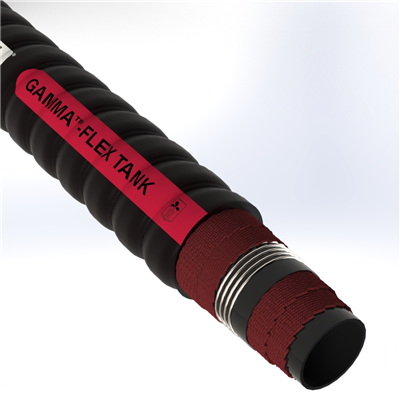

GTA15F1-2.0-200N by Texcel | GAMMA™-FLEX TANK Series | Corrugated Tank Truck Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black
GAMMA™ by Texcel
FLEX TANK Series | Corrugated Tank Truck Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.34 |
| 40–79 | $19.30 |
| 80+ | $17.03 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Dramatic flexibility (one-to-one ratio, up to 4" inside diameter) for ease of handling. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Black, Neoprene (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-FLEX TANK - FLEXIBLE TANK TRUCK HOSE 150 PSI W.P. | Features: | Exceptional flexibility |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GTA15F1-1.5-200N | 1-1/2" | 1-63/64" | 150 psi | 29 | 1.5" | 0.77 lbs |
| GTA15F1-2.0-200N | 2" | 2-30/64" | 150 psi | 29 | 2" | 1.02 lbs |
| GTA15F1-2.5-200N | 2-1/2" | 3" | 150 psi | 29 | 3.5" | 1.31 lbs |
| GTA15F1-3.0-200N | 3" | 3-32/64" | 150 psi | 29 | 3" | 1.60 lbs |
| GTA15F1-4.0-200N | 4" | 4-36/64" | 150 psi | 29 | 4" | 2.55 lbs |
| GTA15F1-5.0-100N | 5" | 5-46/64" | 150 psi | 29 | 6" | 3.86 lbs |
| GTA15F1-6.0-100N | 6" | 6-48/64" | 150 psi | 29 | 10" | 4.17 lbs |
| GTA15F1-8.0-100N | 8" | 8-52/64" | 150 psi | 29 | 10" | 6.02 lbs |
