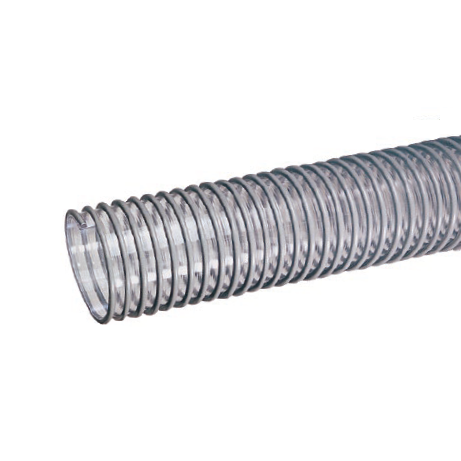

GT600X100 Tigerflex by Kuriyama | GT Series | Ducting/Material Handling Hose | 6" ID | PVC | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Cable protection, Drain lines, Dust collection, Ducting, ventilation and fume removal, Material handling - light duty | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| GT150X100 | 1-1/2" | 38.1mm | 1.82" | 46.2mm | 20 PSI | 7 PSI | 22 in. Hg | 14 in. Hg | 1" | 100ft | 0.23 lbs |
| GT150X50 | 1-1/2" | 38.1mm | 1.82" | 46.2mm | 20 PSI | 7 PSI | 22 in. Hg | 14 in. Hg | 1" | 50ft | 0.23 lbs |
| GT200X100 | 2" | 50.8mm | 2.39" | 60.8mm | 15 PSI | 6 PSI | 21 in. Hg | 12 in. Hg | 2" | 100ft | 0.30 lbs |
| GT200X50 | 2" | 50.8mm | 2.39" | 60.8mm | 15 PSI | 6 PSI | 21 in. Hg | 12 in. Hg | 2" | 50ft | 0.30 lbs |
| GT250X100 | 2-1/2" | 63.5mm | 2.89" | 73.4mm | 10 PSI | 5 PSI | 19 in. Hg | 10 in. Hg | 2" | 100ft | 0.39 lbs |
| GT250X50 | 2-1/2" | 63.5mm | 2.89" | 73.4mm | 10 PSI | 5 PSI | 19 in. Hg | 10 in. Hg | 2" | 50ft | 0.39 lbs |
| GT300X100 | 3" | 76.2mm | 3.46" | 87.9mm | 10 PSI | 5 PSI | 18 in. Hg | 10 in. Hg | 3" | 100ft | 0.50 lbs |
| GT300X50 | 3" | 76.2mm | 3.46" | 87.9mm | 10 PSI | 5 PSI | 18 in. Hg | 10 in. Hg | 3" | 50ft | 0.50 lbs |
| GT350X100 | 3-1/2" | 88.9mm | 4.02" | 102.0mm | 9 PSI | 4 PSI | 15 in. Hg | 8 in. Hg | 3" | 100ft | 0.68 lbs |
| GT350X50 | 3-1/2" | 88.9mm | 4.02" | 102.0mm | 9 PSI | 4 PSI | 15 in. Hg | 8 in. Hg | 3" | 50ft | 0.68 lbs |
| GT400X100 | 4" | 101.6mm | 4.50" | 114.3mm | 8 PSI | 4 PSI | 13 in. Hg | 7 in. Hg | 3" | 100ft | 0.77 lbs |
| GT400X50 | 4" | 101.6mm | 4.50" | 114.3mm | 8 PSI | 4 PSI | 13 in. Hg | 7 in. Hg | 3" | 50ft | 0.77 lbs |
| GT500X100 | 5" | 127.0mm | 5.50" | 139.7mm | 7 PSI | 3 PSI | 10 in. Hg | 6 in. Hg | 5" | 100ft | 0.91 lbs |
| GT500X50 | 5" | 127.0mm | 5.50" | 139.7mm | 7 PSI | 3 PSI | 10 in. Hg | 6 in. Hg | 5" | 50ft | 0.91 lbs |
| GT600X100 | 6" | 152.4mm | 6.54" | 166.1mm | 6 PSI | 3 PSI | 7 in. Hg | 5 in. Hg | 6" | 100ft | 1.08 lbs |
| GT600X50 | 6" | 152.4mm | 6.54" | 166.1mm | 6 PSI | 3 PSI | 7 in. Hg | 5 in. Hg | 6" | 50ft | 1.08 lbs |
| GT800X50 | 8" | 203.2mm | 8.59" | 218.2mm | 4 PSI | 2 PSI | 5 in. Hg | 3 in. Hg | 8" | 50ft | 1.74 lbs |
| GT1000X50 | 10" | 254.0mm | 11.68" | 296.6mm | 2 PSI | N/A | 2 in. Hg | N/A | 10" | 50ft | 2.70 lbs |
