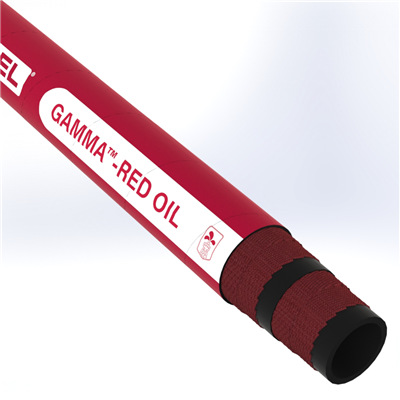

GRO15S1-2.0-200 by Texcel | GAMMA™-RED OIL Series | Oil Delivery Hose | 2" Hose ID | 100 PSI | Red

$1,398.37

GAMMA™ by Texcel
RED OIL Series | Oil Delivery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Hose Length: 100' Length

100' Length 200' Length Exact Length (FT)

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Technical Data:
Description:	Lightweight oil discharge hose for use in a variety of applications where an oil-resistant, soft-wall discharge hose is required.	Tube:	Black, fuel and oil-resistant, NBR compound
Cover:	Red, oil, weather and abrasion-resistant EPDM/NR/SBR compound	Reinforcement:	High tensile tire cord plies and static wire
Safety Factor:	3:1	Temperature:	-30°F to +180°F
Safety Note:	Not recommend for use on reels	Branding:	TEXCEL® GAMMA™-RED OIL - OIL DELIVERY HOSE 150 PSI W.P.

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Lbs./ft
GRO15S1-2.0-200	2"	2-32/64"	150 psi	0.86 lbs
GRO15S1-3.0-200	3"	2"	150 psi	1.24 lbs
GRO15S1-4.0-200	4"	4-32/64"	150 psi	1.73 lbs
