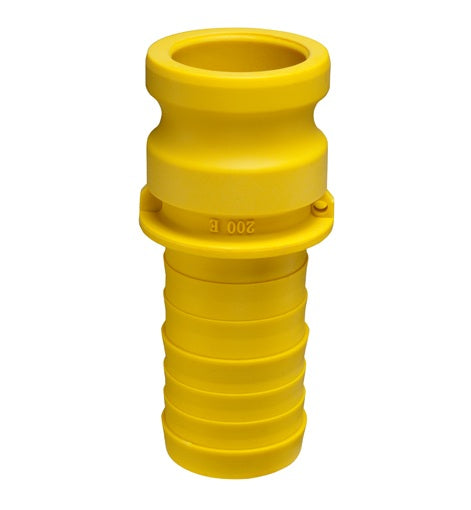

GRE400 by Kuriyama | GRE Series | Part E | Cam & Groove Fitting | 4" Adapter x 4" Hose Barb | Nylon

GRE400 by Kuriyama | GRE Series | Part E | Cam & Groove Fitting | 4" Adapter x 4" Hose Barb | Nylon

Sale price$34.72
Buy more, save moreDiscounts applied in cart/checkout.

What are the Applications?

  • Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
  • Nylon has similar performance characteristics to polypropylene, but it can withstand higher temperatures, variable humidity, and has some additional chemical resistance versus the polypropylene.

What are the Features?

  • Nylon material is fiberglass reinforced for added strength and durability.
  • Good abrasion and chemical resistance.
  • Lightweight yet strong.
  • Precision molded to ensure consistency in form and function.

What are the Materials?

  • Fiberglass reinforced nylon.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
GRE100 1" 100 PSI 0.16 lbs
GRE150 1-1/2" 100 PSI 0.18 lbs
GRE200 2" 100 PSI 0.28 lbs
GRE300 3" 50 PSI 0.66 lbs
GRE400 4" 50 PSI 0.04 lbs

Additional Product Data:

Series:
  • GRE Series
MAWP:

50

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
