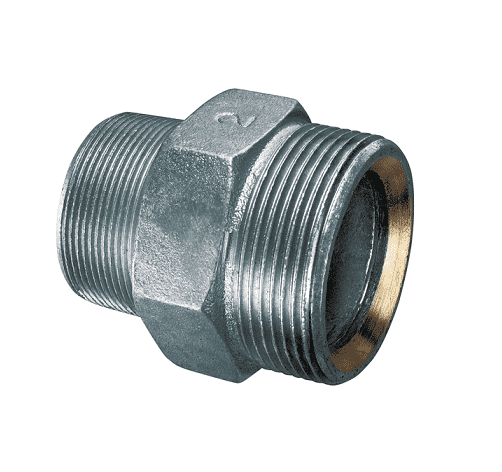

GMS-100 by Kuriyama | Ground Joint Coupling Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Zinc Plate

GMS-100 by Kuriyama | Ground Joint Coupling Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Zinc Plate

Sale price$21.15

Kuriyama Couplings™ - Ground Joint Couplings - Male Spud with Copper Seal - Male NPT x Male NPS - Zinc Plate

Buy More, Save More!
Quantity Price Each
10–39 $19.88
40–79 $17.98
80+ $15.86
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Seal Material(s):
  • Copper
Applications:
Features:
  • Interlocking Bolt Clamps recommended when assembling to a hose.
  • Steam: 250 PSI
  • Air: 600 PSI
  • Temperature: 450 deg. F (+232 deg. C)
Materials:
  • N/A
Part Number Male NPT Male NPS Weight (Lbs.)
GMS-050 1/2" 1/2" 0.29 lbs
GMS-075 3/4" 3/4" 0.75 lbs
GMS-100 1" 1" 0.79 lbs
GMS-125 1-1/4" 1-1/4" 1.43 lbs
GMS-150 1-1/2" 1-1/2" 1.7 lbs
GMS-200 2" 2" 2.23 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
