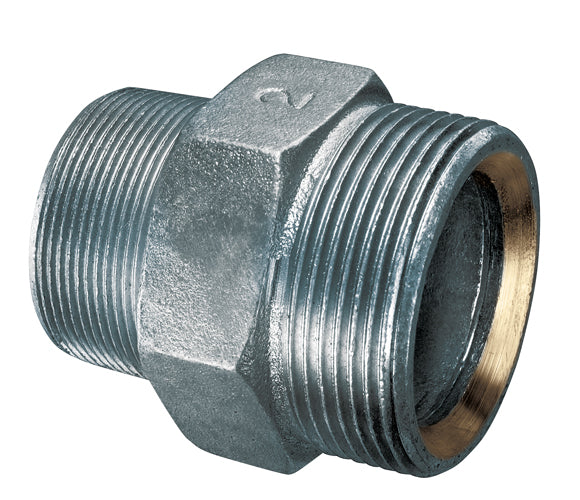

GMS-100 Alfagomma by Kuriyama | GMS Series | Ground Joint Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Plated Ductile Iron

GMS-100 Alfagomma by Kuriyama | GMS Series | Ground Joint Male Spud with Copper Seal | 1" Male NPT x 1" Male NPS | Plated Ductile Iron

Sale price$20.63

Alfagomma® by Kuriyama
GMS Series | Ground Joint Male Spud with Copper Seal | Male NPT x Male NPS | Plated Ductile Iron

Designed for use in medium to high-pressure applications using steam, air, and fluids.
Buy More, Save More!
Quantity Price Each
10–39 $19.39
40–79 $17.54
80+ $15.47
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • GMS Series
Shape:

Straight
Features:
  • Designed for use in medium to high-pressure applications using steam, air, and fluids.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Used in conjunction with interlocking bolt clamps.
  • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds.
  • Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Material:
  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.
Maximum Service Temperature:
  • +450°F (+232°C)
Part Number Size
(in)		 Water Steam Air Weight
GMS-050 1/2" 600 PSI 250 PSI 600 PSI 0.29 lbs/ft
GMS-075 3/4" 600 PSI 250 PSI 600 PSI 0.75 lbs/ft
GMS-100 1" 600 PSI 250 PSI 400 PSI 0.79 lbs/ft
GMS-125 1-1/4" 600 PSI 250 PSI 400 PSI 1.43 lbs/ft
GMS-150 1-1/2" 600 PSI 250 PSI 350 PSI 1.70 lbs/ft
GMS-200 2" 600 PSI 250 PSI 350 PSI 2.23 lbs/ft
