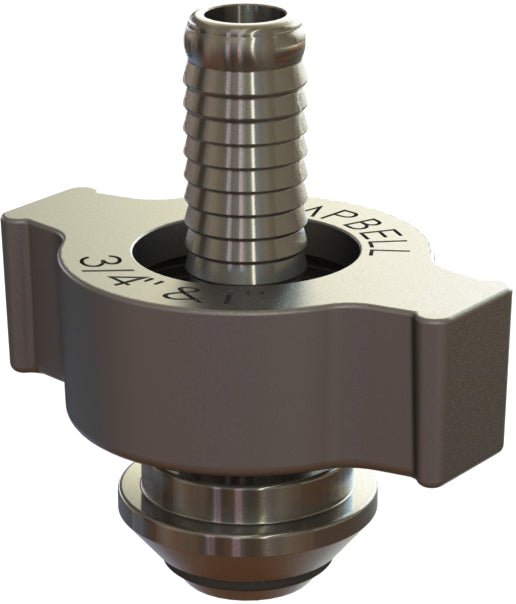

GJS-2 by Campbell Fittings | Ground Joint Coupling | Hose Stem | 1/2" Hose Size x 1/2" Hose Barb | Viton® Seal | Straight | Steel

GJS-2 by Campbell Fittings | Ground Joint Coupling | Hose Stem | 1/2" Hose Size x 1/2" Hose Barb | Viton® Seal | Straight | Steel

Sale price$14.68

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Hose Stem
Buy More, Save More!
Quantity Price Each
10–39 $13.80
40–79 $12.48
80+ $11.01
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male NPT
  • 1/2in Hose Barb
Material(s):
  • Steel
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number Hose Size
GJS-2 1/2"
GJS-3 3/4"
GJS-4 1"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
