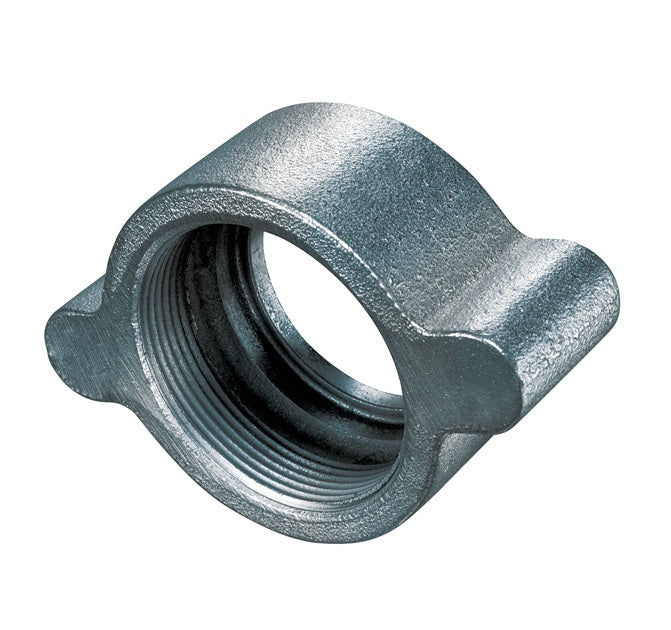

GJN-125 by Kuriyama | GJN Series | Ground Joint Wing Nut | with NPS Thread | 1-1/4" Size | Plated Ductile Iron
Kuriyama of America Inc.
GJN Series | Ground Joint Wing Nut with NPS Thread | Plated Ductile Iron
Designed for use in medium to high-pressure applications using steam, air, and fluids.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.74 |
| 40–79 | $14.23 |
| 80+ | $12.56 |
Discounts applied in cart/checkout.
What are the Features?
- Designed for use in medium to high-pressure applications using steam, air, and fluids.
- The metal-to-metal design provides for optimum sealing at high temperatures.
- Used in conjunction with interlocking bolt clamps.
- Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
- Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
What are the Materials?
- Ductile iron plated.
- ASTM A536, Grade 65/45/12.
What are the Specifications?
- Maximum Service Temperature: +450°F (+232°C)
| Part Number | Size (in) |
Water (PSI) |
Steam (PSI) |
Air (PSI) |
Weight Each (lbs) |
|---|---|---|---|---|---|
| GJN-050 | 1/2" | 600 PSI | 250 PSI | 600 PSI | 0.31 lbs |
| GJN-075 | 3/4" | 600 PSI | 250 PSI | 600 PSI | 0.71 lbs |
| GJN-100 | 1" | 600 PSI | 250 PSI | 600 PSI | 0.71 lbs |
| GJN-125 | 1-1/4" | 600 PSI | 250 PSI | 600 PSI | 1.52 lbs |
| GJN-150 | 1-1/2" | 600 PSI | 250 PSI | 600 PSI | 1.52 lbs |
| GJN-200 | 2" | 600 PSI | 250 PSI | 600 PSI | 2.54 lbs |
| GJN-250 | 2-1/2" | 450 PSI | 250 PSI | 400 PSI | 4.65 lbs |
| GJN-300 | 3" | 450 PSI | 250 PSI | 400 PSI | 5.51 lbs |
| GJN-400 | 4" | 450 PSI | 250 PSI | 400 PSI | 10.63 lbs |
Product Data:
Series:
MAWP:
600
Ends Configuration:
Material(s):
Specifications and Approvals:
