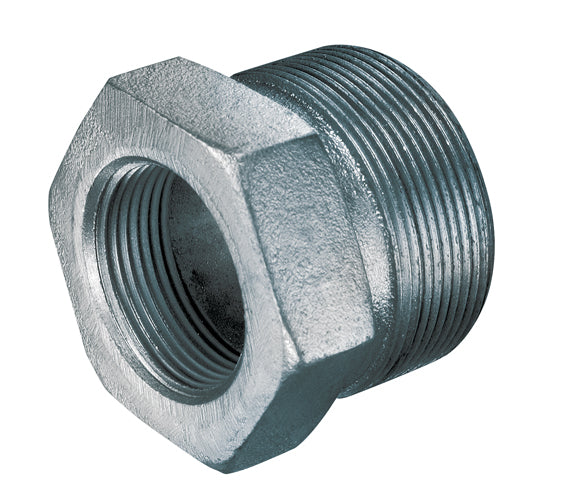

GJF-100 by Kuriyama | Ground Joint Coupling Female Spud with Copper Seal | 1" Female NPT x 1" Male NPS | Zinc Plate

GJF-100 by Kuriyama | Ground Joint Coupling Female Spud with Copper Seal | 1" Female NPT x 1" Male NPS | Zinc Plate

Sale price$18.33

Kuriyama Couplings™ - Ground Joint Couplings - Female Spud with Copper Seal - Female NPT x Male NPS - Zinc Plate

Buy More, Save More!
Quantity Price Each
10–39 $17.23
40–79 $15.58
80+ $13.75
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Seal Material(s):
  • Copper
Applications:
Features:
  • Interlocking Bolt Clamps recommended when assembling to a hose.
  • Steam: 250 PSI
  • Air: 600 PSI
  • Temperature: 450 deg. F (+232 deg. C)
Materials:
  • N/A
Part Number Female NPT Male NPS Weight (Lbs.)
GJF-050 1/2" 1/2" 0.29 lbs
GJF-075 3/4" 3/4" 0.64 lbs
GJF-100 1" 1" 0.57 lbs
GJF-125 1-1/4" 1-1/4" 1.21 lbs
GJF-150 1-1/2" 1-1/2" 1.04 lbs
GJF-200 2" 2" 1.39 lbs
GJF-250 2-1/2" 2-1/2" 4.23 lbs
GJF-300 3" 3" 5.51 lbs
GJF-400 4" 4" 8.88 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
