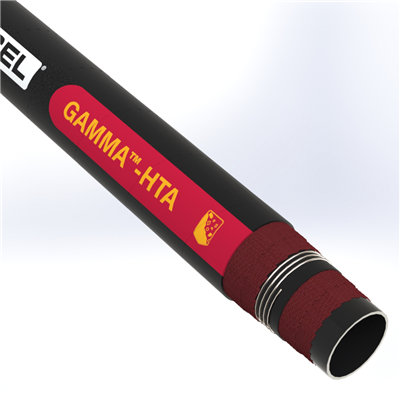

GHTA15S1-3.0-200 by Texcel | GAMMA™-HTA Series | Hot Tar & Asphalt Hose | 3" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black
GAMMA™ by Texcel
HTA Series | Hot Tar and Asphalt Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $56.61 |
| 40–79 | $51.19 |
| 80+ | $45.17 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | This rugged hose is specifically designed for the transfer of petroleumbased products such as high temperature asphalt, tar, and hot oils. Suitable for suction and discharge service on rail transport cars, tank trucks, bulk stations, storage tanks and disposing units. | Tube: | Black, special synthetic acrylic rubber, heat and abrasion resistant |
| Cover: | Black, CR anti-static, with a smooth abrasion, weather and heat resistant wrapped cover | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -20°F to +350°F (intermittent) |
| Branding: | TEXCEL® GAMMA™-HTA - HOT TAR & ASPHALT HOSE 150 PSI W.P. | Safety Note: | Texcel recommends using Dixon Valve and Coupling’s Boss™ 4-Bolt Clamp System for Hot Tar and Asphalt hose. Please consult Dixon’s selection and installation recommendations, including bolt re-tightening procedures, to insure proper hose assembly. Maximum service temp. 350°F, intermittent use only |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft |
|---|---|---|---|---|---|---|
| GHTA15S1-2.0-200 | 2" | 2-46/64" | 150 | 29 | 10" | 1.80 lbs |
| GHTA15S1-3.0-200 | 3" | 3-50/64" | 150 | 29 | 15" | 2.94 lbs |
| GHTA15S1-4.0-200 | 4" | 4-51/64" | 150 | 29 | 20" | 3.89 lbs |
