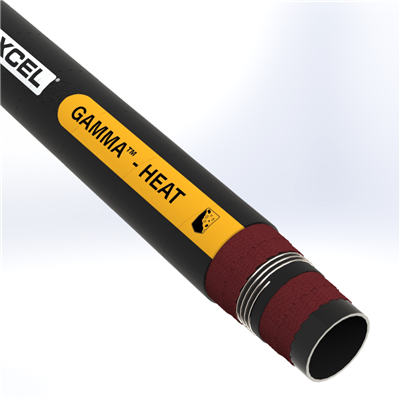

GHE15S1B-4.0 by Texcel | GAMMA™-HEAT Series | Hot Air Blower Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Brown
Minimum Order Quantity: 5 Units
GAMMA™ by Texcel
HEAT Series | Hot Air Blower Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $173.06 |
| 30–59 | $156.49 |
| 60+ | $138.08 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | High heat-resisting EPDM blower hose made with premium-grade materials for reliable service life when connecting the blower to flow lines on dry-bulk trailers. | Tube: | Black, high heat-resisting EPDM |
| Cover: | Black or brown*, smooth high heat-resisting EPDM | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +300°F continuous; 350°F intermittent |
| Branding: | TEXCEL® GAMMA™ - HEAT - HOT AIR BLOWER HOSE 150 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Bend Radius | Working Pressure (psi) | Vacuum (in./HG) | Color | Lbs./Ft |
|---|---|---|---|---|---|---|---|
| GHE15S1-3.0 | 3" | 3-33/64" | 12" | 150 | 29 | Brown | 1.75 lbs |
| GHE15S1B-3.0 | 3" | 3-33/64" | 12" | 150 | 29 | Black | 1.75 lbs |
| GHE15S1B-3.0 | 3" | 3-33/64" | 12" | 150 | 29 | Brown | 1.75 lbs |
| GHE15S1-4.0 | 4" | 4-36/64" | 16" | 150 | 29 | Black | 2.40 lbs |
| GHE15S1B-4.0 | 4" | 4-36/64" | 16" | 150 | 29 | Brown | 2.40 lbs |
