GH681-4 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose | SAE 100R1 | 0.25" ID
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss

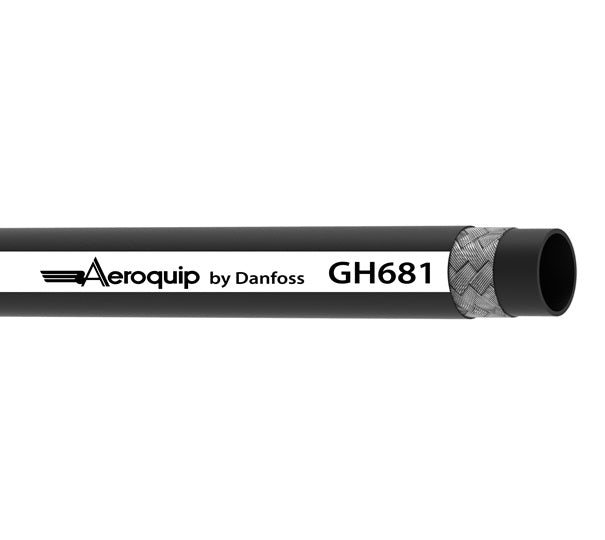

GH681 Series | MatchMate® Global Premium 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.25 |
| 40–79 | $5.65 |
| 80+ | $4.99 |
Product Data:
3700
| Hose Properties: | |||
|---|---|---|---|
| Application: | Low and Medium Pressure Hydraulic Systems, Petroleum and Water-Based Fluids, Construction Equipment, and Agriculture Equipment. | SAE Rating: | Meets or exceeds: SAE 100R1 Type S, EN853 Type 1SN, ISO 18752, ISO 1436-1 Type 1SN performance (-3 thru -8) for pressure, but does not meet dimensional requirements. |
| Other Ratings: | MSHA Accepted, ABS Accepted, DNV Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | Single Wire Braid | Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -51°F to +248°F (-46°C to +120°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH681-4 | 6 | 6,4mm | 0.25" | 12,9mm | 0.51" | 255,0 bar | 3700 psi | 1020 bar | 14800 psi | 50,0mm | 1.97" | 0,21 kg/m | 0.14 lbs/ft |
| GH681-6 | 10 | 9,5mm | 0.38" | 16,3mm | 0.64" | 235,0 bar | 3400 psi | 940 bar | 13600 psi | 63,0mm | 2.48" | 0,31 kg/m | 0.21 lbs/ft |
| GH681-8 | 12 | 12,7mm | 0.50" | 19,9mm | 0.78" | 221,0 bar | 3200 psi | 883 bar | 12800 psi | 90,0mm | 3.54" | 0,43 kg/m | 0.29 lbs/ft |
| GH681-10 | 16 | 15,9mm | 0.63" | 22,3mm | 0.88" | 140,0 bar | 2025 psi | 559 bar | 8100 psi | 100,0mm | 3.94" | 0,42 kg/m | 0.28 lbs/ft |
| GH681-12 | 19 | 19,0mm | 0.75" | 26,0mm | 1.02" | 138,0 bar | 2000 psi | 552 bar | 8000 psi | 120,0mm | 4.72" | 0,56 kg/m | 0.37 lbs/ft |
| GH681-16 | 25 | 25,4mm | 1.00" | 34,0mm | 1.34" | 103,0 bar | 1500 psi | 414 bar | 6000 psi | 150,0mm | 5.91" | 0,80 kg/m | 0.54 lbs/ft |
| GH681-20 | 31 | 31,8mm | 1.25" | 41,5mm | 1.63" | 69,0 bar | 1000 psi | 276 bar | 4000 psi | 210,0mm | 8.27" | 1,01 kg/m | 0.68 lbs/ft |
| GH681-24 | 38 | 38,1mm | 1.50" | 47,9mm | 1.89" | 52,0 bar | 750 psi | 207 bar | 3000 psi | 250,0mm | 9.84" | 1,19 kg/m | 0.80 lbs/ft |
| GH681-32 | 51 | 50,8mm | 2.00" | 64,0mm | 2.52" | 41,0 bar | 600 psi | 166 bar | 2400 psi | 315,0mm | 12.4" | 1,92 kg/m | 1.29 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
