GH506-16 Aeroquip by Danfoss | High Pressure 4S 4-Spiral Wire Hydraulic Hose | Meets EN 856 | 1.00" ID
Aeroquip® by Danfoss

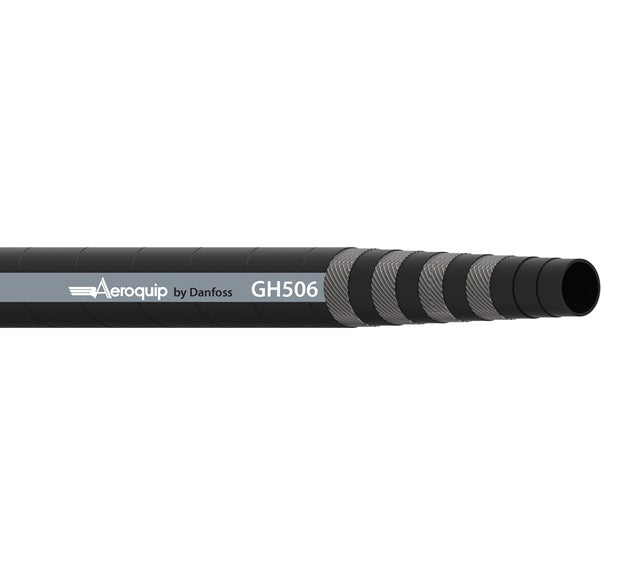

GH506 Series | High Pressure 4S 4-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $73.81 |
| 20–59 | $66.74 |
| 60+ | $58.89 |
Product Data:
5500
| Hose Properties: | |||
|---|---|---|---|
| Application: | High pressure hydraulic systems with petroleum and water-based fluids. | SAE Rating: | Meets: EN 856 Type 4SH, ISO 18752, ISO 3862 Type 4SH |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | (-40°F to +212°F) (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH506-12* | 19 | 19,0mm | 0.75" | 33,0mm | 1.30" | 420,0 bar | 6100 psi | 1680,0 bar | 24400 psi | 280,0mm | 11.02" | 1,49 kg/m | 1.00 lbs/ft |
| GH506-16* | 25 | 25,4mm | 1.00" | 39,4mm | 1.54" | 380,0 bar | 5500 psi | 1520,0 bar | 22000 psi | 340,0mm | 13.39" | 2,05 kg/m | 1.38 lbs/ft |
| GH506-20 | 31 | 31,8mm | 1.25" | 47.1mm | 1.85" | 350,0 bar | 5100 psi | 1400,0 bar | 20400 psi | 460,0mm | 18.11" | 2,54 kg/m | 1.71 lbs/ft |
| GH506-24 | 38 | 38,1mm | 1.50" | 53,6mm | 2.11" | 300,0 bar | 4350 psi | 1200,0 bar | 17400 psi | 560,0mm | 22.05" | 3,27 kg/m | 2.20 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
