GH466-20 Aeroquip by Danfoss | High Pressure 6S High Tensile 6-Spiral Wire Hydraulic Hose | Meets: EN 856 | 1.25" ID
Aeroquip® by Danfoss

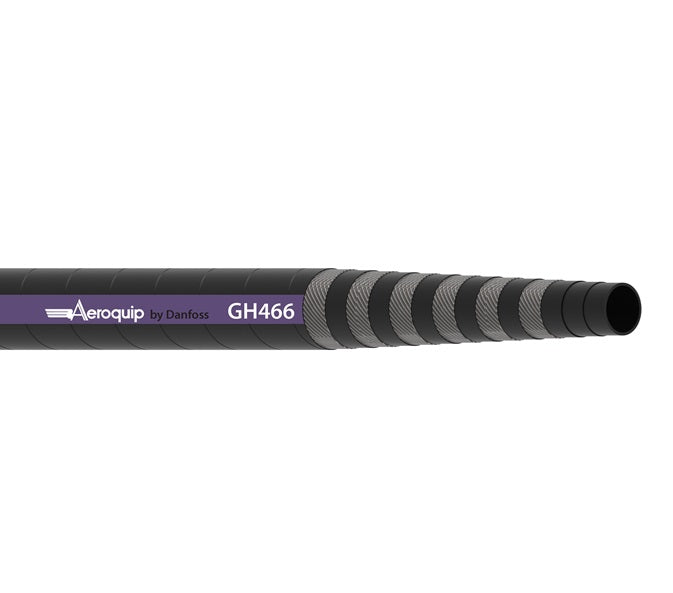

GH466 Series | High Pressure 6S High Tensile 6-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $70.71 |
| 20–59 | $63.94 |
| 60+ | $56.42 |
Product Data:
6100
| Hose Properties: | |||
|---|---|---|---|
| Application: | High pressure hydraulic systems with extreme pressure peaks. For use with petroleum and waterbased fluids. | SAE Rating: | Meets: EN 856 Type R13/R15, ISO 18752 |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | High Tensile 6-Spiral Wire Layers | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | (-40°F to +250°F) (-40°C to +121°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH466-20 | 31 | 31,8mm | 1.25" | 50,4mm | 1.98" | 420,0 bar | 6100 psi | 1680,0 bar | 24400 psi | 420,0mm | 16.53" | 3,48 kg/m | 2.68 lbs/ft |
| GH466-24 | 38 | 38,1mm | 1.50" | 58,3mm | 2.29" | 420,0 bar | 6100 psi | 1680,0 bar | 24400 psi | 510,0mm | 19.69" | 4,63 kg/m | 3.56 lbs/ft |
| GH466-32* | 51 | 50,8mm | 2.00" | 72,7mm | 2.86" | 420,0 bar | 6100 psi | 1680,0 bar | 24400 psi | 630,0mm | 24.80" | 6,70 kg/m | 5.16 lbs/ft |
*Internal Skive Fittings
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
