GH001-6 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J2064 Type E | 0.31" ID
Aeroquip® by Danfoss

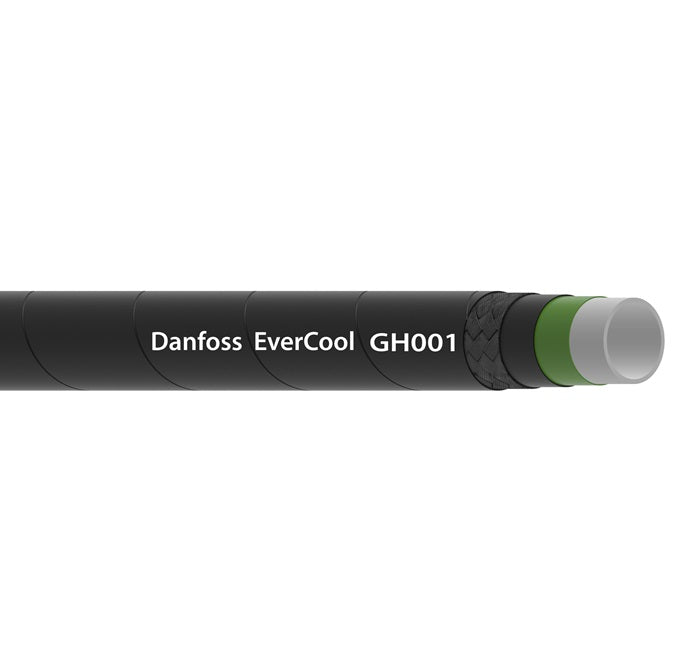

GH001 Series | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.27 |
| 40–79 | $5.67 |
| 80+ | $5.00 |
Product Data:
| Hose Properties: | |||||
|---|---|---|---|---|---|
| Application: | A/C systems for truck, bus, agriculture, construction equipment and refrigeration systems. | SAE Rating: | Exceeds: SAE J2064 Type E, Class 1 | ||
| Tube: | New dual extrusion technology polyamide Type E veneer. | Reinforcement: | Polyester Braid | ||
| Cover: | Blended EPDM | Operating Parameters: | -40°F to +284°F (-40°C to +140°C) R1234yf effusion <1kg/m2/yr at 80°C R134a effusion <1.5kg/m2/yr at 80°C Oils: POE, PAG, Mineral oil, Alkybenzene Moisture ingression Class I |
Benefits: | -Extremely low permeation. -Excellent heat resistance offering a higher functional temperature range than SAE J2064 Type C or E hoses. -Ozone and UV resistant. -Easy to install - significant reduction in potential hose damage. GH001 has maximum kink resistance, temperature resistance. -SAE J2064 Type E veneer tube offers excellent oil and refrigerant compatibility |
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | kPa | in/Hg | |
| GH001-4 | 5 | 4,8mm | 0.19" | 11,6mm | 0.46" | 35 bar | 500 psi | 140 bar | 2000 psi | 38,1mm | 1.50" | 0,100 kg/m | 0.07 lbs/ft | 94,8 kPa | 28 in/Hg |
| GH001-6 | 8 | 7,9mm | 0.31" | 14,7mm | 0.58" | 35 bar | 500 psi | 140 bar | 2000 psi | 50,0mm | 2.00" | 0,135 kg/m | 0.09 lbs/ft | 94,8 kPa | 28 in/Hg |
| GH001-8 | 10 | 10,3mm | 0.41" | 17,8mm | 0.70" | 35 bar | 500 psi | 140 bar | 2000 psi | 63,0mm | 2.50" | 0,177 kg/m | 0.12 lbs/ft | 94,8 kPa | 28 in/Hg |
| GH001-10 | 12 | 12,7mm | 0.50" | 19,8mm | 0.78" | 35 bar | 500 psi | 140 bar | 2000 psi | 76,2mm | 3.00" | 0,223 kg/m | 0.15 lbs/ft | 94,8 kPa | 28 in/Hg |
| GH001-12 | 16 | 15,9mm | 0.63" | 24,9mm | 0.98" | 35 bar | 500 psi | 140 bar | 2000 psi | 101,6mm | 4.00" | 0,269 kg/m | 0.18 lbs/ft | 94,8 kPa | 28 in/Hg |
| GH001-16 | 19 | 22,4mm | 0.88" | 31,2mm | 1.23" | 35 bar | 500 psi | 140 bar | 2000 psi | 127,0mm | 7.00" | 0,430 kg/m | 0.22 lbs/ft | 94,8 kPa | 28 in/Hg |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
