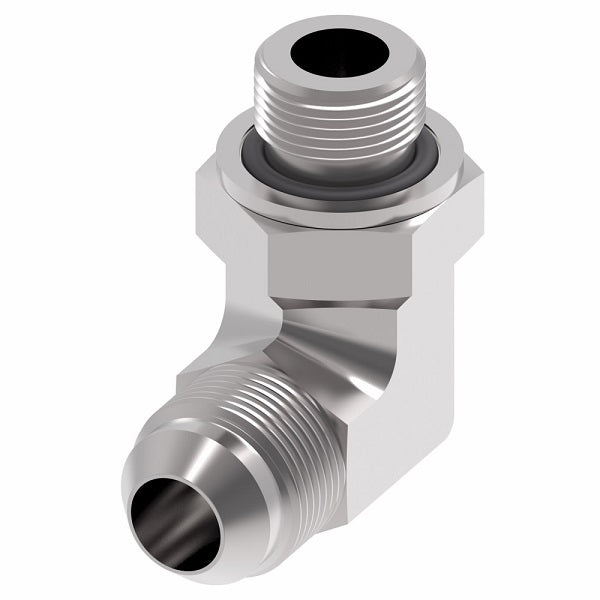

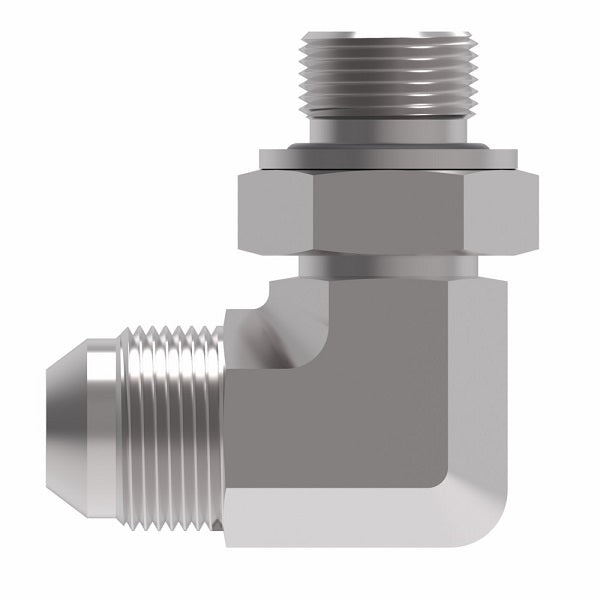

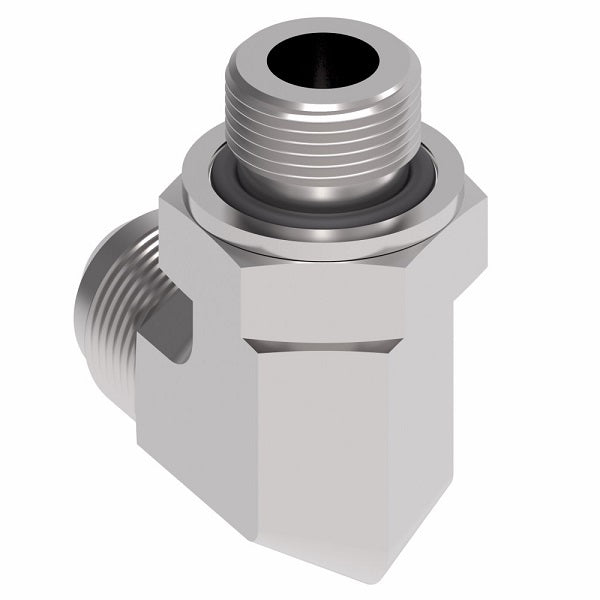

GG306-NP04-02 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -04 Male 37° JIC x -02 Male BSPP | Steel
GG306-NP04-02 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -04 Male 37° JIC x -02 Male BSPP | Steel
GG306-NP04-02 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -04 Male 37° JIC x -02 Male BSPP | Steel

GG306-NP04-02 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -04 Male 37° JIC x -02 Male BSPP | Steel

Sale price$63.40

Aeroquip® by Danfoss
Male 37° JIC/BSPP Male (Adj.) Adapter
Male 37° JIC x Male BSPP
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $59.60
40–79 $53.89
80+ $47.55
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Male JIC
  • 1/8in Male BSPP
Material(s):
  • Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A B
GG306-NP04-02 0.25" 7/16-20 G1/8-28 0.89" 1.04"
GG306-NP04-04 0.25" 7/16-20 G1/4-19 1.06" 1.24"
GG306-NP05-04 0.31" 1/2-20 G1/4-19 1.06" 1.24"
GG306-NP06-04 0.38" 9/16-18 G1/4-19 1.06" 1.24"
GG306-NP06-06 0.38" 9/16-18 G3/8-19 1.12" 1.44"
GG306-NP08-06 0.50" 3/4-16 G3/8-19 1.24" 1.44"
GG306-NP08-08 0.50" 3/4-16 G1/2-14 1.34" 1.69"
GG306-NP10-08 0.63" 7/8-14 G1/2-14 1.44" 1.69"
GG306-NP10-12 - - - - -
GG306-NP12-12 0.75" 1-1/16-12 G3/4-14 1.65" 1.93"
GG306-NP16-16 1.00" 1-5/16-12 G1-11 1.81" 2.07"
GG306-NP20-20 1.25" 1-5/8-12 G1-1/4-11 2.05" 2.24"
