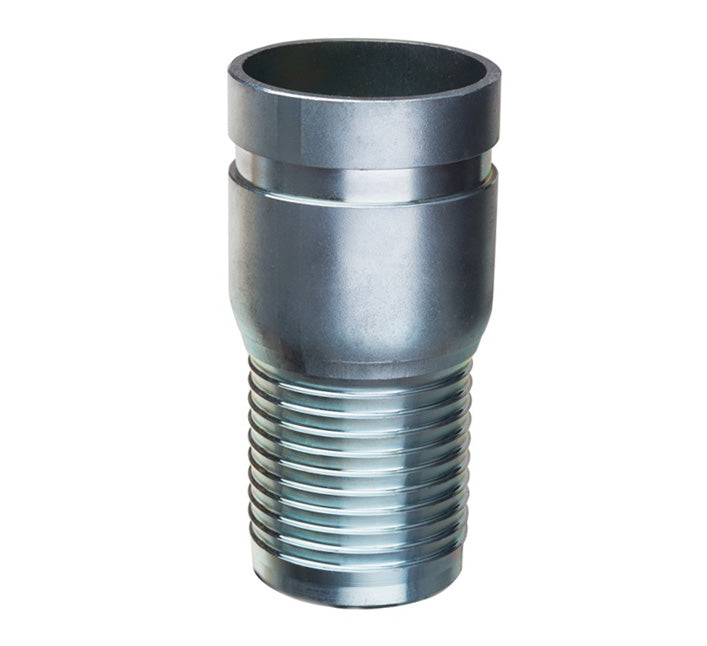

GEN300 by Kuriyama | GEN Series | Combination Hose Nipple | 3" Grooved End x 3" Hose Barb | Plain Steel
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Versatile hose connectors designed to connect hose and pipes of the same thread size.
- Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
- Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.
What are the Materials?
- Plain Steel - Complies with ASTM A53 B welded pipe.
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| GEN100 | 1" | 125 PSI | 0.58 lbs |
| GEN125 | 1-1/4" | 125 PSI | 0.62 lbs |
| GEN150 | 1-1/2" | 125 PSI | 0.86 lbs |
| GEN200 | 2" | 75 PSI | 1.28 lbs |
| GEN250 | 2-1/2" | 75 PSI | 2.03 lbs |
| GEN300 | 3" | 75 PSI | 3.17 lbs |
| GEN400 | 4" | 75 PSI | 3.88 lbs |
| GEN600 | 6" | 75 PSI | 14.60 lbs |
| GEN800 | 8" | 50 PSI | 19.73 lbs |
| GEN1000 | 10" | 50 PSI | 26.14 lbs |
| GEN1200 | 12" | 50 PSI | 39.82 lbs |
Additional Product Data:
Series:
MAWP:
75
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
