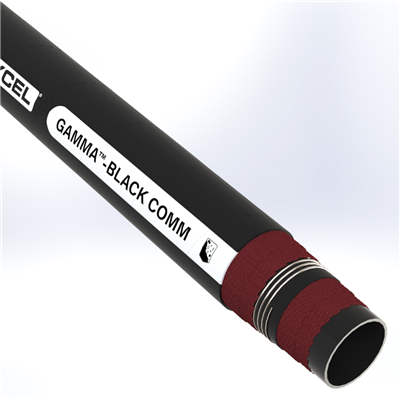

GCOMM-S-B1-8.0-50N by Texcel | GAMMA™-BLACK COMM Series | Commodity Suction Hose | 8" Hose ID | 75 PSI | 20 in/Hg Vacuum Rated | Black
GAMMA™ by Texcel
BLACK COMM Series | Black Commodity Suction Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $125.26 |
| 20–59 | $113.26 |
| 60+ | $99.94 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A hose similar to our renowned “TEX-COMMODITY” green suction hose, but with a black cover and tube, made of static-dissipating materials where food and potable water features are not necessary. | Tube: | Black, abrasion-resistant NR/SBR, static-dissipating materials |
| Cover: | Black, SBR | Reinforcement: | High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12” |
| Safety Factor: | 4:1 | Temperature: | -20°F to +180°F |
| Branding: | TEXCEL® GAMMA™-BLACK COMM - BULK COMMODITY SUCTION HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P. | Features: | Size 5"-12" are corrugated for extra flexibility |
| Part Number | Hose ID | Hose OD | Tube Gauge | Working Pressure (psi) | Vacuum (in./Hg) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|---|
| GCOMM-S-B1-2.0-100N | 2" | 2-5/64" | 3/16" | 150 psi | 28 | 5" | 1.87 lbs |
| GCOMM-S-B1-2.5-100N | 2-1/2" | 3-27/64" | 3/16" | 125 psi | 28 | 8" | 2.26 lbs |
| GCOMM-S-B1-3.0-100N | 3" | 3-59/64" | 3/16" | 125 psi | 28 | 10.5" | 2.64 lbs |
| GCOMM-S-B1-4.0-100N | 4" | 4-63/64" | 3/16" | 100 psi | 28 | 12" | 4.02 lbs |
| GCOMM-S-B1-5.0-50N | 5" | 6-4/64" | 1/4" | 75 psi | 28 | 13.5" | 5.18 lbs |
| GCOMM-S-B1-6.0-50N | 6" | 7-49/64" | 1/4" | 75 psi | 25 | 15" | 6.43 lbs |
| GCOMM-S-B1-8.0-50N | 8" | 9-6/64" | 1/4" | 50 psi | 20 | 17" | 9.89 lbs |
| GCOMM-S-B1-10.0-25N | 10" | 11-16/64" | 1/4" | 50 psi | 20 | 19" | 13.79 lbs |
| GCOMM-S-B1-12.0-25N | 12" | 13-15/64" | 1/4" | 50 psi | 20 | 25" | 17.41 lbs |
