GC75-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 13/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel Short Rise | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — Bite to the Wire

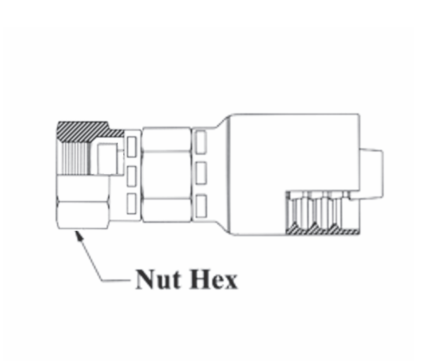

GC75 Grip Crimp Coupling — O-Ring Face Seal (ORF), Female Swivel, Short Rise Straight
GC75 is the O-Ring Face Seal (ORF), Female Swivel, Short Rise Straight configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.
1
What are the main product features?
- Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
- Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
- Trivalent Zinc Plating
- Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
- Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2
Which sizes are available?
| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex |
|---|---|---|---|---|---|
| GC75-4x4 | 1/4" | 9/16x18 | 1/4" | 9/16" | 11/16" |
| GC75-4x6 | 1/4" | 11/16x16 | 3/8" | 5/8" | 13/16" |
| GC75-6x6 | 3/8" | 11/16x16 | 3/8" | 11/16" | 13/16" |
| GC75-6x8 | 3/8" | 13/16x16 | 1/2" | 3/4" | 15/16" |
| GC75-8x8 | 1/2" | 13/16x16 | 1/2" | 13/16" | 15/16" |
| GC75-8x10 | 1/2" | 1x14 | 5/8" | 15/16" | 1-1/8" |
| GC75-10x10 | 5/8" | 1x14 | 5/8" | 15/16" | 1-1/8" |
| GC75-10x12 | 5/8" | 1-3/16x12 | 3/4" | 1-1/8" | 1-3/8" |
| GC75-12x12 | 3/4" | 1-3/16x12 | 3/4" | 1-1/8" | 1-3/8" |
| GC75-12x16 | 3/4" | 1-7/16x12 | 1" | 1-3/8" | 1-5/8" |
| GC75-16x16 | 1" | 1-7/16x12 | 1" | 1-3/8" | 1-5/8" |
| GC75-20x20 | 1-1/4" | 1-11/16x12 | 1-1/4" | 1-11/16" | 1-7/8" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
