GC53-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

GC53-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Sale price$44.46

Couplamatic Systems Inc.
Grip Crimp Series - Code 61 Split Flange - 90° Bend
Buy More, Save More!
Quantity Price Each
10–39 $41.79
40–79 $37.79
80+ $33.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

90 Degree

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

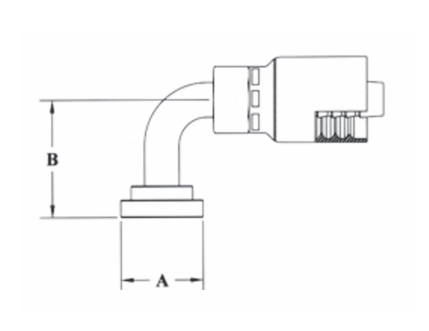

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Gates Mega Parker 43
GC53-8x8 1/2" 1/2" 1.19" 1.62" 8G-8FL90 11943-8-8
GC53-8x12 1/2" 3/4" 1.50" 1.68" 8G-12FL90M 11943-12-8
GC53-12x12 3/4" 3/4" 1.50" 2.12" 12G-12FL90 11943-12-12
GC53-12x16 3/4" 1" 1.75" 2.12" 12G-16FL90 11943-16-12
GC53-16x16 1" 1" 1.75" 2.38" 16G-16FL90 11943-16-16
GC53-16x20 1" 1-1/4" 2.00" 2.38" 16G-20FL90 11943-20-16
GC53-20x20 1-1/4" 1-1/4" 2.00" 2.62" 20G-20FL90 11943-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
