GC43-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x G-1/4-19 Thread Size 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow | Trivalent Zinc Plating

GC43-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x G-1/4-19 Thread Size 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow | Trivalent Zinc Plating

Sale price$19.73
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — Bite to the Wire

GC43 Grip Crimp Coupling — 60° Cone, BSPP, Female Swivel, 45° Elbow

GC43 is the 60° Cone, BSPP, Female Swivel, 45° Elbow configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?
  • G. as part of thread size is ISO designation for parallel thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
  • Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2

Which sizes are available?

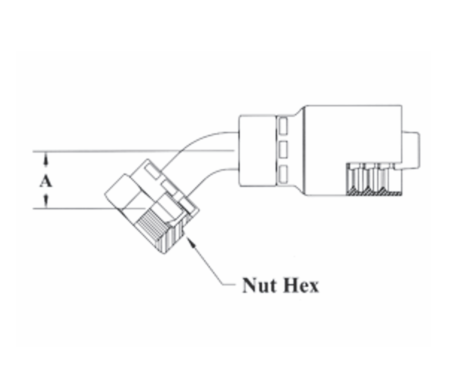

Part Number Hose ID BSPP Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC43-4x4* 1/4" 1/4" G-1/4-19 0.91" 3/4" 4G-4FBSPORX45 1B143-4-4
GC43-6x6* 3/8" 3/8" G-3/8-19 0.90" 7/8" 6G-6FBSPORX45 1B143-6-6
GC43-8x8* 1/2" 1/2" G-1/2-14 0.87" 1" 8G-8FBSPORX45 1B143-8-8
GC43-12x12* 3/4" 3/4" G-3/4-14 1.31" 1-1/4" 12G-12FBSPORX45 1B143-12-12
i
Does not have groove for optional O-ring The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • Grip Crimp Series
Shape:

45 Degree

Ends Configuration:
  • 1/4in Female BSPP
  • 1/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
