GC42-8x16 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

GC42-8x16 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

Sale price$32.76

Couplamatic Systems Inc.
Grip Crimp Series - DIN Heavy 24° Seat - Female Swivel 45° Bend
Buy More, Save More!
Quantity Price Each
10–39 $30.79
40–79 $27.85
80+ $24.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

45 Degree

Ends Configuration:
  • S16 Female DIN
  • 1/2in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

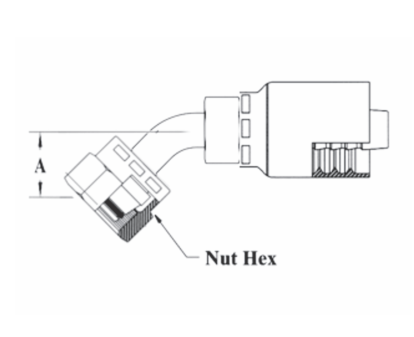

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex
GC42-4x10 1/4" 10mm M18x1.5 0.96" 7/8"
GC42-6x12 3/8" 12mm M20x1.5 1.13" 1"
GC42-8x16 1/2" 16mm M24x1.5 1.25" 1-1/8"
GC42-10x20 5/8" 20mm M30x2.0 1.50" 1-1/2"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
